Equipment downtime caused by premature joint failure directly erodes project margins. When standard off-the-shelf components fail to meet specific load, wear, or dimensional requirements, custom manufacturing becomes a necessary intervention. Heavy machinery requires reliable articulation to function efficiently under extreme stress. Sourcing a custom pin and bushing involves much more than matching basic physical dimensions. It requires aligning metallurgy, surface treatments, and precise tolerances with the exact operational environment of your machine. Mismatched materials or incorrect clearances rapidly accelerate wear and trigger catastrophic equipment failures. This guide outlines the technical criteria and supplier evaluation frameworks necessary to specify, validate, and procure custom joint components. You will learn how to approach complex material selection, navigate strict engineering tolerances, and vet reliable manufacturing partners to protect your heavy equipment fleets.
Standard replacement parts often assume ideal operational conditions. They usually fail quickly in harsh field realities. Abrasive environments and high-impact tasks accelerate wear on generic stock items. You cannot rely on off-the-shelf parts for extreme conditions. Mass-produced variants lack the specialized hardening needed for abrasive silica dust. They degrade rapidly when exposed to corrosive chemicals. Heavy machinery operates in brutal environments. It needs components engineered specifically to withstand those exact destructive forces.
Older or heavily modified equipment fleets often face a unique maintenance challenge. They lack reliable access to standard OEM machinery parts. Manufacturers frequently phase out older machine models. They stop producing legacy articulation components. Reverse-engineered custom components become the only viable path to keep these assets operational. You must source parts built to exact historical specifications. Often, you can upgrade these legacy designs to modern material standards for better performance.

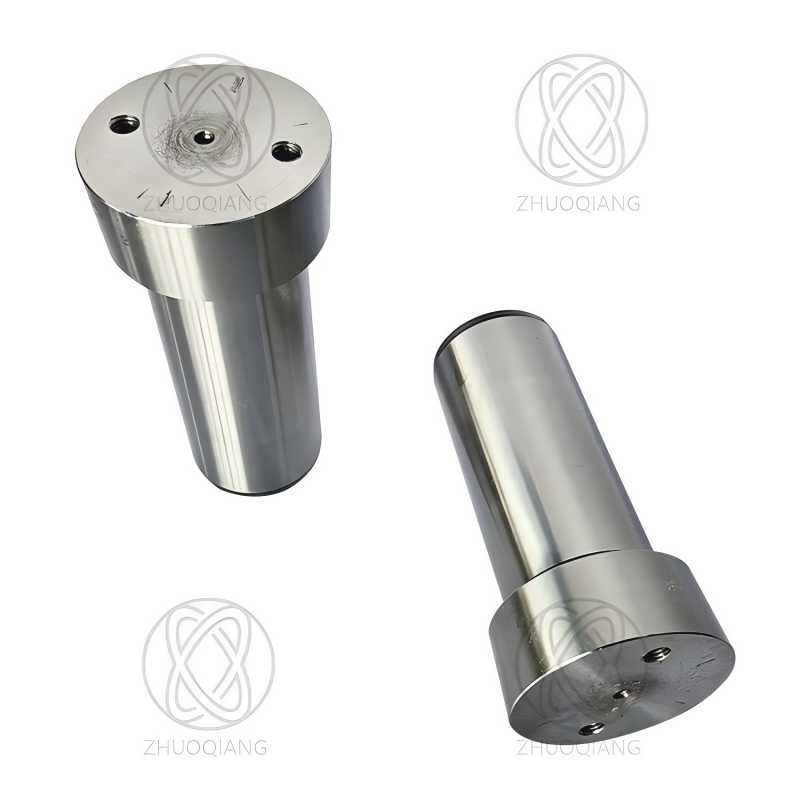

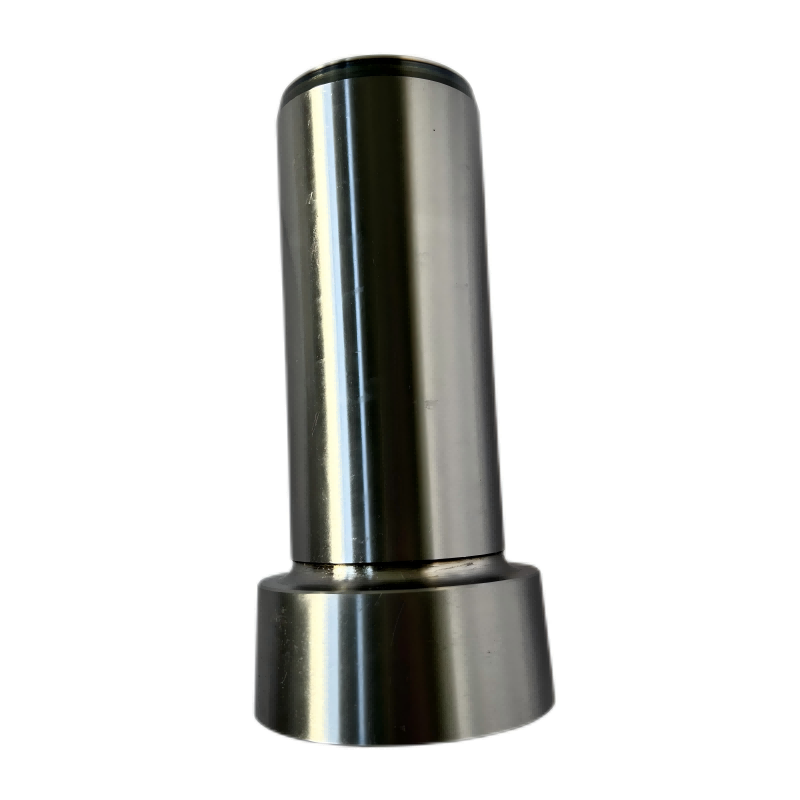

High-stress application profiles demand custom engineering. Custom parts yield the highest operational return in these specific scenarios. Consider an excavator pin and bushing operating daily in abrasive granite quarries. Standard steel degrades rapidly under constant grit exposure. Custom hardened alloys withstand the abrasion effectively. Similarly, a loader hinge pin faces severe asymmetric dynamic loads. It handles massive twisting forces during lifting operations. Custom engineering ensures the joint resists shearing under sudden impacts.
How do you measure a successful transition to custom parts? Success criteria include significantly extended maintenance intervals. Precise fitment serves as another major indicator. You should avoid expensive line-boring rework during installation. A perfect initial fit reduces aggregate downtime across your entire fleet.
Material synergy dictates overall joint longevity. The fundamental rule of articulation engineering is simple yet critical. You must actively avoid identical hardness between mating parts. Identical metals rub together and cause severe galling. They create massive friction and cold weld themselves together. You must pair a harder metal shaft with a softer sleeve.
You have several distinct options for housing sleeves. Bronze alloys provide excellent overall load capacity. Aluminum bronze and manganese bronze serve as standard choices. They offer exceptional anti-galling properties under heavy pressure. The bronze acts as a sacrificial wear part. It slowly degrades over time to protect the more expensive custom pin shaft. This strategy isolates structural damage to the easily replaceable component.
Hardened steel sleeves serve entirely different mechanical needs. They work best in low-speed, extreme high-load applications. However, they demand strict, continuous lubrication protocols. Without constant grease distribution, steel-on-steel friction destroys the joint rapidly.
Self-lubricating or oilless options provide a modern maintenance alternative. Graphite-plugged bronze is a highly effective choice. We often recommend composite options for remote applications. A self-lubricating custom bushing shines when daily greasing is impossible. It ensures continuous safe operation without manual maintenance intervention.
| Material Type | Load Capacity | Speed Suitability | Lubrication Needs | Primary Field Application |
|---|---|---|---|---|
| Bronze Alloys (Aluminum/Manganese) | Moderate to High | Medium | Regular manual greasing | High impact, sacrificial wear protection |
| Hardened Steel | Very High | Low | Continuous, strict schedule | Heavy static loads, slow oscillation |
| Oilless Composite / Graphite Plugged | Moderate | Low to Medium | None required | Hard-to-reach or neglected joints |
Base metals form the essential foundation of mechanical strength. Alloy steels like 4140 and 4340 set the standard baseline. They deliver exceptional tensile strength for heavy machinery articulation.
Heat treatment completely determines field performance. You must choose carefully between induction hardening and carburizing. Induction hardening creates a thick, hard outer case. It easily reaches 50-60 HRC. Meanwhile, the internal core remains ductile and impact-resistant. This dual-property structure prevents the metal from snapping under severe shock loads. Carburizing adds carbon directly to the surface. It provides excellent wear resistance for smaller, highly loaded parts.
Surface finishes significantly extend operational life. Micro-finish values dictate seal survival. Lower Ra values indicate smoother metal surfaces. Smooth surfaces reduce friction and protect delicate rubber seals from tearing. Anti-corrosion plating is equally vital. Chrome, zinc, or nitride coatings actively repel moisture. They extend seal life and prevent environmental rust accumulation.
Standard component designs often require structural upgrades for severe duty. You must define exact dimensional tolerances before manufacturing begins. Clearances determine how freely the joint moves during operation. Press fit requirements dictate how tightly the sleeve sits securely in the housing. You must ensure absolute structural integrity. A tight fit prevents the sleeve from spinning inside the bore. A loose internal clearance causes binding and eventual structural failure.
Lubrication pathways require careful planning and geometric design. Standard parts often feature inadequate grease distribution channels. You can upgrade them easily during the custom design phase. Integrate custom grease grooves directly into the internal diameter. Figure-eight patterns trap grease effectively under constant oscillation. Spiral grooves actively push lubricant along the entire shaft length. Straight grooves handle heavy radial loads exceptionally well. Optimal lubricant distribution prevents dangerous dry spots.
Standardization compliance ensures easy field installation. Custom designs must still adhere to baseline industry specifications. Metric DIN standards provide universal guidelines for heavy equipment. Standardization allows seamless component integration. Your custom parts will fit existing retaining rings perfectly. They will accommodate standard collars and off-the-shelf mechanical seals without modification.
Selecting the right manufacturing partner dictates project success. Avoid suppliers acting merely as middlemen or brokers. Brokers outsource technical work and lose crucial quality control. You must shortlist partners through rigorous technical verification. Verify their in-house CNC turning capabilities directly. Check their milling centers and precision grinding machines. In-house operational control ensures they meet tight engineering tolerances.
Material traceability guarantees long-term field performance. You must require official Mill Test Reports (MTRs). Request material certifications for every single production batch. These documents prove the exact chemical alloys and hardness levels. They guarantee the supplier actually delivered the premium metal you ordered.
Assess their reverse engineering competence thoroughly. Many custom projects start with worn, deformed sample parts from the field. The supplier must translate these ruined samples into accurate CAD models. They must then generate flawless final production blueprints. Ask specific questions about their reverse engineering workflow. Precision 3D laser scanners and experienced mechanical engineers are absolute necessities.
Production scalability affects your long-term fleet support. Evaluate their flexibility regarding Minimum Order Quantities (MOQs). Can they deliver a single prototype set quickly for an emergency breakdown? Can they easily scale operations to handle fleet-wide bulk orders later? Lead time transparency is absolutely critical. You need highly predictable delivery dates to schedule fleet maintenance accurately.
Field implementation carries hidden mechanical hazards. The actual press-fit process presents a major risk of galling. Field technicians often attempt to force parts together improperly. Brute-force mechanical pressing ruins expensive custom components instantly. You must mandate correct thermal expansion techniques. Freeze the inner shafts using liquid nitrogen or dry ice. Heat the outer housings carefully and evenly. This temperature differential allows parts to slip together smoothly. They lock securely into place upon returning to normal room temperature.
Initial financial costs for custom parts are undeniably higher. However, you must evaluate the long-term lifecycle return on investment. Custom components carry a higher upfront cost than standard aftermarket parts. You justify this initial expense through verified extended lifecycle data. Custom components last significantly longer and fail far less frequently. They drastically reduce expensive labor hours required for frequent replacements.
Custom materials require strict maintenance protocol adjustments. Introducing oilless variants changes your daily operations completely. You must update standard operating procedures for fleet lubrication schedules. Technicians habituated to daily greasing might mistakenly over-lubricate them. Over-greasing self-lubricating composites is highly counterproductive. Excess grease attracts dirt and forms a destructive abrasive paste. Train your maintenance teams to respect the new material properties.
Sourcing custom joints serves as a highly strategic maintenance decision. It intentionally trades a higher initial specification effort for massive long-term reliability. Precision engineering drastically reduces aggregate mechanical failure across your entire fleet. You systematically replace reactive emergency repairs with proactive engineered solutions.
Fleet managers should take immediate, calculated action. Audit your highest-failure articulation joints first. Gather accurate operational wear data directly from the field. Consult with a certified manufacturing partner immediately. Ensure they are fully capable of advanced reverse-engineering and rigorous metallurgical testing. Upgrading your critical components protects your heavy equipment investments for years to come.
A: Lead times vary based on engineering complexity and raw material availability. Most in-house manufacturers produce prototypes within 2 to 4 weeks. Bulk orders may require 6 to 8 weeks. Rush services can expedite critical breakdown replacements to under a week if the necessary alloys are currently in stock.
A: Yes. Precision engineering facilities use 3D laser scanning and detailed metallurgical analysis. They measure the unworn sections of the damaged component to determine original dimensions. Engineers then draft new CAD models and adjust clearances to compensate for any existing housing wear.
A: Many specialized machining facilities accommodate low MOQs. They can produce a single emergency set for an unexpected breakdown. Once the CAD models and CNC machining programs are finalized, you can easily scale up to dozens or hundreds of units for scheduled fleet-wide maintenance.
A: Excavators experience extreme, unpredictable shock loads during digging operations. Induction hardening creates a very hard, wear-resistant outer case while maintaining a soft, ductile core. This essential dual-property structure prevents the shaft from snapping or fracturing under sudden heavy impacts.
A: Choose bronze for high-impact applications where you need a sacrificial wear part. Bronze protects the expensive internal shaft and actively resists galling. Choose hardened steel for extremely high static loads in low-speed environments, provided you can maintain a strict, continuous daily lubrication schedule.
