You want your excavator to be safe and last longer. Choosing the right method for excavator bushing replacement helps your machine perform optimally. It also reduces the risk of costly issues. Experts agree that quality bushings and proper replacement steps prevent uneven wear and help avoid sudden breakdowns. By following the best repair tips for excavator bushing replacement, your equipment will be safer and more reliable.
Regular inspections and timely excavator bushing replacement save money, minimize downtime, and extend the life of your machine.
Check bushings often and change them when they wear out. This helps your excavator work well and stops big repair bills.
Use the right tools and follow safety rules when you take out or put in bushings. This keeps your machine safe from harm.
Put grease on pins and bushings every day. Turn them halfway through their use to stop rubbing and help them last longer.
Always look at alignment and fit closely when you put in bushings. This stops uneven wear and keeps the machine safe.
Do not use quick fixes. Always pick good parts and the right ways to keep your excavator safe and working well.
You want your excavator to work well every day. Changing bushings on time helps your machine move right. It keeps all the parts working together. If you change bushings before they wear out, you protect pins and bushings from harm. This keeps the fit tight and stops too much wear or bending. Good lubrication stays in place, so there is less friction. This stops metal parts from rubbing together.
Here are some things you will notice after you change old bushings:
The machine works smoother and moves more accurately.
There is less noise, shaking, and jamming when you use it.
Bushings and bucket pins last longer.
All parts move steady and stay flexible.
There is less chance of fast wear.
Strong bushings made from tough materials, like 40Cr alloy steel, last longer. They can take hits and do not wear out fast. Special CNC grooves help lower friction and make wear even. You will need fewer repairs and your bushings last longer if you pick good ones and change them on time.
You save money and avoid problems if you change bushings before they break. Old bushings can stretch tracks and cause pitching. This can hurt the undercarriage and other parts. If you do not fix worn bushings, repairs cost more and take longer. Doing regular care, like greasing and turning pins and bushings, slows down wear. It also keeps everything spaced right.
Good lubrication makes a shield that keeps dirt out. It also stops uneven wear. Turning pins and bushings shows new surfaces and helps stop pitching. These steps help your excavator last longer and keep working. You will not have as many breakdowns. Your projects will stay on track.
Tip: Always use good bushings and follow the right steps when you put them in. This gives you the best results and saves money on your excavator.

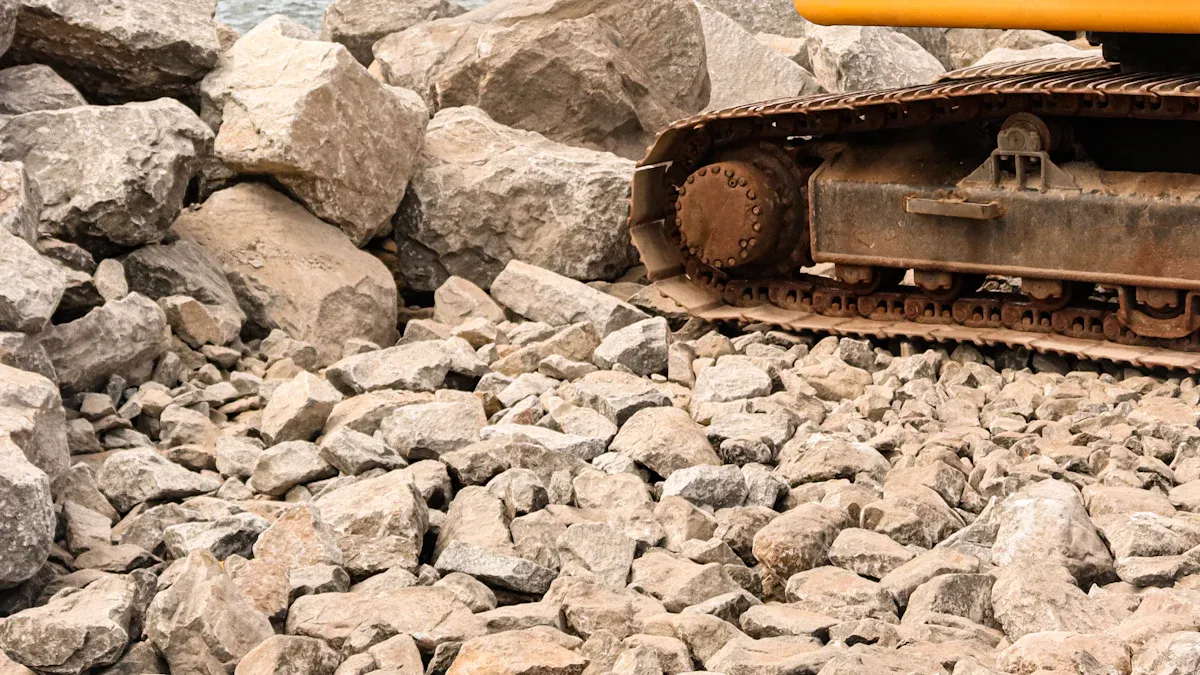

You can find worn bushings by looking at your excavator’s moving parts. First, check if the track hangs lower than normal. This means there is slack or sagging. Look for grooves, cracks, or bushings shaped like eggs. These shapes show the bushings are very worn. Grease leaking near pins means seals and bushings are damaged. Check if the arm, boom, or bucket feels loose. If these parts move too much, the bushings need help. Uneven wear on track shoes and sprockets also shows bushings are worn.
Track hangs lower than normal
Grooves, cracks, or egg-shaped bushings
Grease leaks near pins
Loose arm, boom, or bucket joints
Uneven wear on track shoes and sprockets
Tip: Check your excavator often. This helps you find problems early and keeps your machine working well.
You can hear signs of worn bushings when you use your excavator. Listen for rattling, clanking, or grinding sounds in the cab. These noises mean metal parts are rubbing together. Squeaking or knocking sounds also show bushings are not working right. If attachments wobble or shift, this is a warning sign. Jerky movements and less digging accuracy mean bushings need to be replaced. If parts do not line up or move the wrong way, work gets harder and less safe.
Rattling, clanking, or grinding sounds
Squeaking or knocking noises
Wobbling or shifting attachments
Jerky or sloppy controls
Parts do not line up
Note: Strange noises and movement changes mean you should check your bushings soon.
You can measure bushing wear with easy tools. Use a caliper to check the gap between the pin and bushing. If the gap is too wide, the bushing is worn out. Normal press fits and shrink fits are about 0.001 inch for each inch of diameter. For field work, looser fits are better. Tight fits can hurt bushings when you put them in. Heating bushings to about 400°F makes installation easier. The table below shows the best measurements:
Measurement Aspect | Recommended Tolerance/Value | Explanation/Context |
|---|---|---|
Press fit tolerance | ~0.001" per inch of diameter | Normal press fit and shrink fit tolerance for bushings and shafts. |
Interference fit range | 0.005" to 0.009" | Depends on size and use; FN 5 press fit example: 0.0058" to 0.0094". |
Clearance between pin & bushing | ~0.015" | Lets grease and dirt in; tight fits can hurt bushings and cause problems in dirty places. |
Installation advice | Looser fits better for field work | Tight fits can damage bushings; bushings should go in with hand tools and not too much force. |
Heating bushings | Heat to ~400°F for easier installation | Heating big bushings helps them fit without damage. |
Tip: Always measure before you change bushings. Good measurements help you avoid expensive mistakes.
You must keep safety first when you start any excavator bushing replacement. Wear gloves to protect your hands from sharp edges and heavy parts. Put on safety glasses to shield your eyes from flying debris. Steel-toed boots help protect your feet if you drop a tool or part. Use a hard hat if you work under the boom or bucket. Make sure your work area has good lighting. Keep a fire extinguisher nearby in case of sparks. Always follow your company’s safety rules.
Tip: Double-check your PPE before you begin. Safety gear helps prevent injuries and keeps you focused on the job.
You need the right tools for a smooth replacement. Gather a hydraulic press, wrenches, hammers, and pin punches. Use a torque wrench to tighten bolts to the correct level. Have a caliper ready to measure pin and bushing sizes. Prepare a clean workspace with enough room to move parts safely. Place all tools within reach to avoid searching during the job. If you work on mini excavator bushings, choose smaller tools that fit tight spaces.
Tool Name | Purpose |
|---|---|
Hydraulic Press | Remove and install bushings |
Wrenches | Loosen and tighten bolts |
Pin Punches | Drive out pins |
Caliper | Measure parts |
Torque Wrench | Ensure correct tightness |
Note: Organize your tools before you start. This saves time and helps you work safely.
Clean and inspect your excavator before you replace bushings. Dirt and debris can hide damage and cause problems. Follow these steps:
Inspect undercarriage parts like chains, rollers, and track shoes for damage or wear.
Clean all areas, especially hard-to-reach spots, to stop corrosion and keep parts moving smoothly.
Check track tension using the operator manual. Adjust if needed to avoid stress on parts.
Lubricate pins and bushings with products the manufacturer recommends.
Watch for unusual wear patterns. These can show alignment problems or improper use.
Callout: Careful cleaning and inspection help you spot issues early. This keeps your machine running longer and prevents costly repairs.

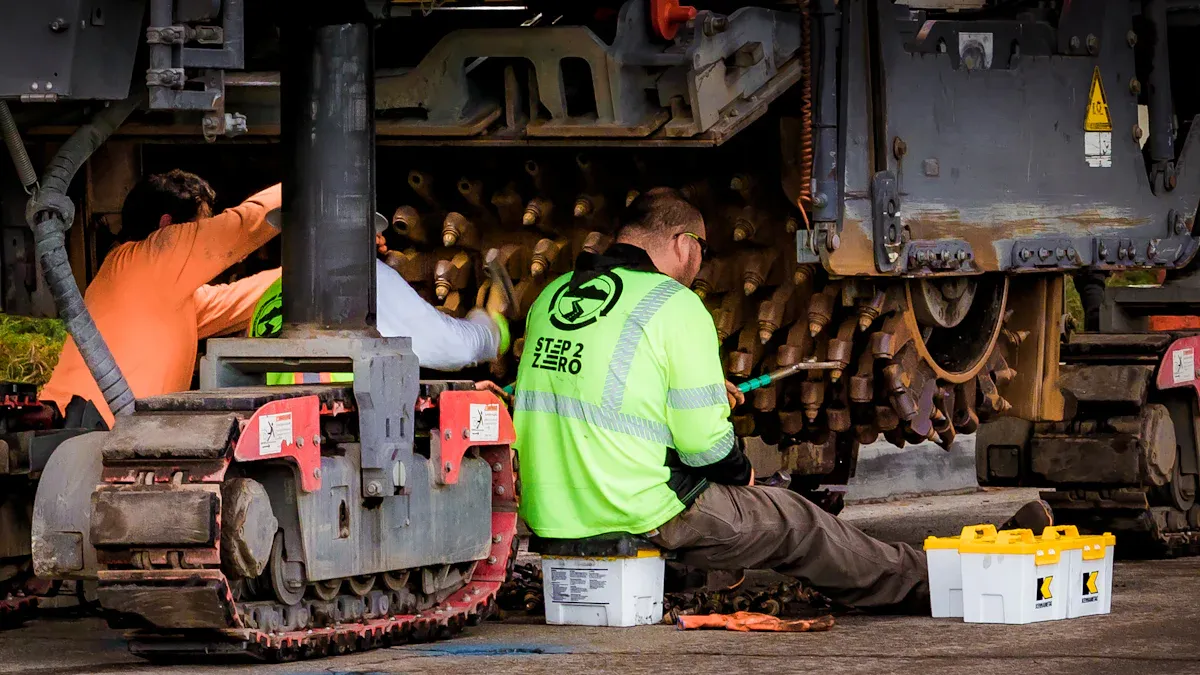

Removing bushings from your excavator is a key step in keeping your machine running smoothly. You need to use the right method to avoid damage and save time. Below, you will learn how to remove digger bushes using both hydraulic press and manual techniques. You will also find tips for handling stuck bushings.
A hydraulic press gives you a safe and efficient way to remove digger bushes. You can use portable press kits designed for excavators. These tools help you work faster and protect your equipment.
Step-by-step process:
Secure your excavator or the part you want to work on. Make sure it will not move.
Inspect the bushing for signs of damage or corrosion.
Align the double action hydraulic press with the bushing. Choose the right adaptors and sleeves for the size.
Activate the press. Apply controlled hydraulic force to push the bushing out.
If needed, switch to pulling mode without moving the press. This helps with removal or installation.
Watch the process closely. Stop if you see any problems.
Remove the bushing and inspect it. Get ready to replace digger bushes if needed.
Tip: Always follow the manufacturer’s instructions for your press. This keeps you safe and protects your excavator.
Benefits of using a hydraulic press:
You save time and reduce labor.
You work safely with remote operation and controlled force.
You protect nearby parts from damage.
You can handle different sizes of bushings and pins.
You can use portable kits for field repairs.
Hydraulic Press Models for Excavators
Model | Cylinder Thrust | Working Pressure | Stroke Length | Sleeve Range |
|---|---|---|---|---|
EBTP100 Portable Bushing Press | 100 Tons | 1-63 MPA | 100 mm | 60-140 mm |
ETP120 Portable Trackpin Press | 120 Tons | 1-63 MPA | 100 mm | N/A |
EBK70 Portable Bushing Press | 70 Tons | 1-63 MPA | 100 mm | 60-120 mm |
These presses are made for heavy equipment. You can remove digger bushes quickly and safely.
You may need to use manual tools if you do not have a hydraulic press. This method works for smaller bushings or when you are in the field.
Manual removal steps:
Clean the area around the bushing. Remove dirt and grease.
Use a pin punch and hammer to tap the bushing out. Work slowly and evenly.
Rotate the punch around the bushing to loosen it. Do not hit too hard.
Pull the bushing out by hand or with pliers once it is loose.
Inspect the housing for damage before you install a new bushing.
Note: Manual removal takes more effort. You must work carefully to avoid damaging the housing or other parts.
Manual removal tips:
Use the right size punch for the bushing.
Wear gloves and safety glasses.
Take breaks if you feel tired.
Check the bushing and housing for cracks or wear.
Sometimes bushings get stuck because of rust, dirt, or old grease. You need special steps to remove digger bushes that will not move.
How to handle stuck bushings:
Apply penetrating oil around the bushing. Wait for it to soak in.
Tap gently with a hammer to break up rust.
Use heat to expand the housing. A heat gun or torch can help loosen the bushing.
Try a puller tool if the bushing will not budge.
If you still cannot remove it, use a hydraulic press for extra force.
Callout: Never force a stuck bushing with too much pressure. You could damage the housing or other parts. Take your time and use the right tools.
Quick checklist for stuck bushings:
Penetrating oil
Hammer and punch
Heat gun or torch
Puller tool
Hydraulic press (if needed)
You can remove digger bushes safely by following these steps. Always inspect the area after removal to make sure it is ready for new bushings.
You need to make sure the new bushing lines up perfectly before you press it in. Start by cleaning the bore and removing any dirt or metal shavings. If the hole is not round, you should restore it by welding and line boring. This step helps the bushing fit tightly and last longer. Always check that the bore is the right size and shape.
Follow these steps for proper alignment:
Clean the bore and bushing.
Check the bore for roundness and correct size.
Use a copper rod or nylon hammer to tap the bushing gently.
Keep the bushing straight as you seat it.
Apply high-temperature grease to the pin before inserting it.
Tip: Never force the bushing in with too much pressure. Gentle, even force prevents damage and keeps everything aligned.
Cooling the bushing makes installation easier. You can use dry ice or a freezer to chill the bushing. When you cool the bushing, it shrinks a little. This shrinkage lets you slide the bushing into the bore without much resistance. After you place the bushing, it warms up and expands, locking itself in place.
Always wear gloves when handling cold bushings.
Clean both the bushing and the bore before fitting.
Use a soft mallet or clamp to seat the bushing evenly.
Work quickly, as the bushing will warm up fast.
A table can help you remember the key points:
Step | Purpose |
|---|---|
Cool the bushing | Shrinks diameter for easy insertion |
Clean surfaces | Prevents debris and ensures good fit |
Use soft tools | Avoids damage during seating |
Work quickly | Prevents premature expansion |
After you install the new bushing, you need to check your work. Make sure the bushing sits flush with the bore and does not stick out. Spin the pin inside the bushing to check for smooth movement. Look for any gaps or misalignment. Tighten bolts to the correct level, but do not over-tighten. Over-tightening can deform the bushing and cause early wear.
Note: Careful final checks help prevent misalignment and extend the life of your excavator bushing replacement.
You need to follow a clear process when you replace excavator bucket pins or replace digger link pins. Start by checking how the pins are fastened. Some pins use a large nut and washer, while others have a bolt through a hole or a threaded pin. Remove these fasteners first. Always support the arm before you take out any pins. Use a forklift, sling, or crane if you need to move the boom or bucket. This keeps everything stable and safe.
Here is a simple step-by-step guide:
Identify the fastening method for each pin.
Remove the nut, bolt, or unscrew the threaded pin.
Support the arm or boom with lifting equipment.
Use a sling or crane to help reposition the bucket or boom if needed.
Carefully pull out the pins.
After you remove the pins, replace digger bushes and inspect the area for wear.
Replace pins and bushes together to keep your excavator working smoothly.
Tip: Always work on flat, level ground. This helps you avoid accidents and makes the job easier.
You want the new excavator bucket pins and link pins to fit perfectly. Use a rated strap or chain to lift the bucket from its ring. Raise the boom high enough so the bucket fits under it. Suspend the bucket off the ground for better control. Align the holes in the stick and bucket. You can use an undersized pipe or bar to help line them up before you insert the correct pins.
Clean the pins and holes before you install them. Test fit each pin to make sure it slides in easily. Use gentle taps with a hammer if needed. After you insert the hinge pin, raise the boom a little so the bucket hangs freely. Rock the bucket to align the linkage pins. This makes installation smoother.
Installation Step | Why It Matters |
|---|---|
Lift bucket with strap | Better control and alignment |
Raise boom high | Easier bucket positioning |
Suspend bucket | Free movement for pin insertion |
Align holes with pipe/bar | Accurate pin placement |
Clean pins and holes | Prevents damage and ensures fit |
Gentle hammer taps | Avoids forcing and damaging pins |
Note: Take your time to check alignment from both the cab and the ground. Good alignment prevents fast wear and keeps your excavator safe.
You should try not to make mistakes when changing excavator bushings. Doing things the right way helps your machine work better and last longer.
If you use the wrong tools or use them the wrong way, you can hurt your excavator. This also makes your work slower. People often mess up with tool use, grease, and pin care. You can stop these problems by following good steps.
Frequent Tool Misuse Errors | Prevention Methods |
|---|---|
Using tools sideways or twisting them | Keep tools straight and at a right angle. Do not twist or force tools. |
Hitting retainer pins without the tool touching | Always keep the tool on the work. Never hit without contact. |
Using retainer pins that are old or broken | Check retainer pins often. Change them if they look worn or damaged. |
Not enough grease or using the wrong kind | Use strong grease with moly, graphite, and copper. Add grease every two hours. |
Greasing the wrong way | Grease while the tool is touching the work. Do not let grease pile up between the tool and piston. |
Mistakes by the operator when greasing | Use auto lube systems to make greasing easier and less likely to go wrong. |
Tip: Using the right tools and good grease helps bushings and pins last longer.
If you do not check things before putting in new bushings, you might miss damage. This can make your machine work badly. Always look for cracks, bends, or wear in the housing and other parts. Check both sides of the undercarriage because they can wear differently. Write down any damage and fix it. Checking often helps you find cracks in hinges and worn pins early. Greasing bucket pins often keeps everything working well.
Look for cracks or wear in the housing and parts.
Check both sides of the undercarriage.
Write down and fix any damage.
Watch for cracks in mounting hinges.
Grease bucket pins often.
Note: Careful checking stops expensive repairs and keeps your excavator safe.
Quick fixes may look easy, but they can make things worse. Using random parts or skipping steps can make things not line up, wear out faster, or even break your machine. Always use the right parts and follow the correct steps. If you have a hard problem, take your time or ask an expert for help.
Do not use quick fixes or parts that do not fit.
Always do alignment and greasing steps.
Ask an expert if you are not sure.
Callout: Shortcuts can cost you more later. Use good methods for the best results.
You can help pins and bushings last longer by picking the right lubricant and using it often. Lubrication makes a shield that stops metal parts from touching each other. This shield also keeps out dirt and water, which helps stop damage. If you forget to lubricate, pins and bushings will wear out faster and might break. For mini excavator maintenance, always use the grease your manufacturer says is best.
Here is a table that shows different lubricants and when to use them:
Lubricant Type | Key Features | Best Use Case |
|---|---|---|
Lithium EP2 Grease | Handles moderate pressure and water | Light to medium-duty work |
Red Lithium Complex Grease | High temperature and load resistance | Heavy-duty, high-stress jobs |
Molybdenum Disulphide (Moly) Grease | Reduces friction, resists seizing | Heavy-load, high-pressure areas |
Marine Grease | Water repellent, corrosion protection | Wet or muddy environments |
Extreme Temperature Grease | Works in very hot or cold conditions | Harsh climates |
Pin and Bush Grease | Graphite and moly, fills surface damage | Pins and bushings needing extra protection |
Tip: Grease all pivot points every day. This easy step helps you avoid big repairs and keeps your excavator working well.
You should turn pins and bushings when your undercarriage is halfway worn out. This means you rotate them when rollers, sprockets, and links are about half used. Turning them shows new surfaces and spreads out the wear. This helps stop chain pitch from getting longer and keeps tracks from coming off. On big machines, turning bushings saves money and cuts down on lost time. On small machines, you might not need to rotate as much, but you should still check them when you replace bushings.
Turn pins and bushings at half undercarriage life.
Show new surfaces to spread out wear.
Stop chain pitch from getting too long and tracks from slipping off.
Save money on repairs for big machines.
Note: Turning pins and bushings is important for good care. It helps your excavator stay safe and last longer.
You need a clear plan to keep pins and bushings in good shape. Daily checks and greasing help you find problems early. Every 500 hours, look at and grease all pivot points. Teach operators to watch for signs of wear or damage. Use a checklist each time you do service so you do not miss anything.
Recommended maintenance steps:
Check and grease pins and bushings every 500 hours.
Grease all moving parts every day.
Look for wear, cracks, or damage each time you check.
Teach operators to tell you about problems right away.
Use a checklist for every service.
Good materials and special coatings help bushings last longer. Bronze alloys with built-in lubricants can grease themselves and fight rust. Steel bushings with special coatings can take heavy loads and make less noise. Surface finishes like zinc or PTFE keep out rust and lower friction.
Callout: Using strong bushings and following your maintenance plan helps you cut down on wear. This keeps your excavator working hard and saves you money.
You can make your excavator last longer by doing these things: First, check for wear and clean the area before you start. Next, use good grease like the manufacturer says. Change pins and bushings at the same time so they fit well. Replace them when they get worn out or after a lot of use.
Maintenance Strategy | Benefit |
|---|---|
Daily inspections | Stops breakdowns |
Operator training | Saves money |
Scheduled maintenance | Makes equipment last |
Ask trusted suppliers for strong bushings and expert help. This keeps your excavator safe, works well, and saves money.
You might see loose joints or hear odd noises. Bushings may look worn or damaged. If you see grease leaking, this is a warning sign. Parts that do not line up right mean bushings need changing soon.
Look at pins and bushings every day before using your machine. Every 500 hours, check them more carefully. Checking often helps you find problems before they get worse.
For small bushings, you can use simple tools like hammers and pin punches. Bigger bushings need a hydraulic press to remove them. The right tools help keep your excavator safe.
Grease pins and bushings every day to stop wear. Turn them when half the undercarriage is worn out. Use strong bushings and good grease to help parts last longer.
Trusted suppliers like Shanghai Fenghua International Enterprise Co., Ltd. can help you. They make custom bushings and pins with good materials. You can get expert advice for all your excavator parts.
