How To Replace Excavator Pins And Bushings for Smooth Operation

You help your excavator work well by changing pins and bushings on time. This also helps it last longer. Using good, model-specific parts like the OEM 2285654 Custom Steel Bushing makes your machine work better. It also helps stop extra wear. An excavator pin and bushing set keeps moving parts tight and steady. Changing pins with the right materials stops shaking and damage. You can use a step-by-step guide to do this job safely and the right way.

Diagnosing Pin and Bushing Wear

Signs of Wear and Play

You need to check your digger often for signs of wear. When you spot problems early, you can fix them before they get worse. Here are some common signs that your excavator pin and bushing may need attention:

• Looseness and increased play in the bucket or linkage areas. This means the parts do not fit tightly.

• Unusual noise and vibration. You might hear metallic knocking or creaking sounds when you use the excavator.

• Uneven wear or deformation. Look for scratches, dents, or other marks on the pins and bushings.

• Reduced smoothness and efficiency. If the bucket moves slower or feels harder to control, this could be a sign of wear.

• Lubrication issues or leakage. Grease leaking out or looking dirty means the parts are not working well.

Eliminating play in these areas helps your machine work better and last longer. If you notice any of these signs, you should plan to inspect and replace the worn parts.

Inspection Steps

You can follow these steps to check for wear and make sure your equipment stays in good shape:

1. Visual and audio test: Move the arm slowly and listen for metallic clunks or knocks. Watch for any movement that looks loose.

2. Load test: Gently press the bucket against the ground and move the joystick a little. Watch for knocking or extra movement in the joints.

3. Differential diagnosis: Use a pry bar to see if the pin moves inside the bushing or if both move together. This helps you find out where the wear is.

4. Measure clearance: Use a micrometer to check the gap between the pin and bushing. If the gap is more than 30% of the original size, you need to replace the parts.

5. Check for smooth movement: The bucket should move without jitters. Eliminating play at this stage keeps your excavator running smoothly.

Tip: Keeping your excavator clean and well-lubricated helps prevent early wear. Using high-quality parts also helps with eliminating play and extending the life of your machine.

Here is a table showing common causes of premature pin and bushing failure:

Preparing for Replacement

Tools and Parts Needed

You need the right tools and parts before you start. This helps you stay safe and finish the job faster. Here are some important tools you will need:

• A hydraulic jack or support frame keeps your machine steady.

• A pry bar, pin puller, and hammer help you take out old pins and bushings.

• A heater or coolant makes it easier to put in new bushings.

• A copper rod or nylon hammer protects parts when you install them.

• Grease or high-temperature butter helps stop friction.

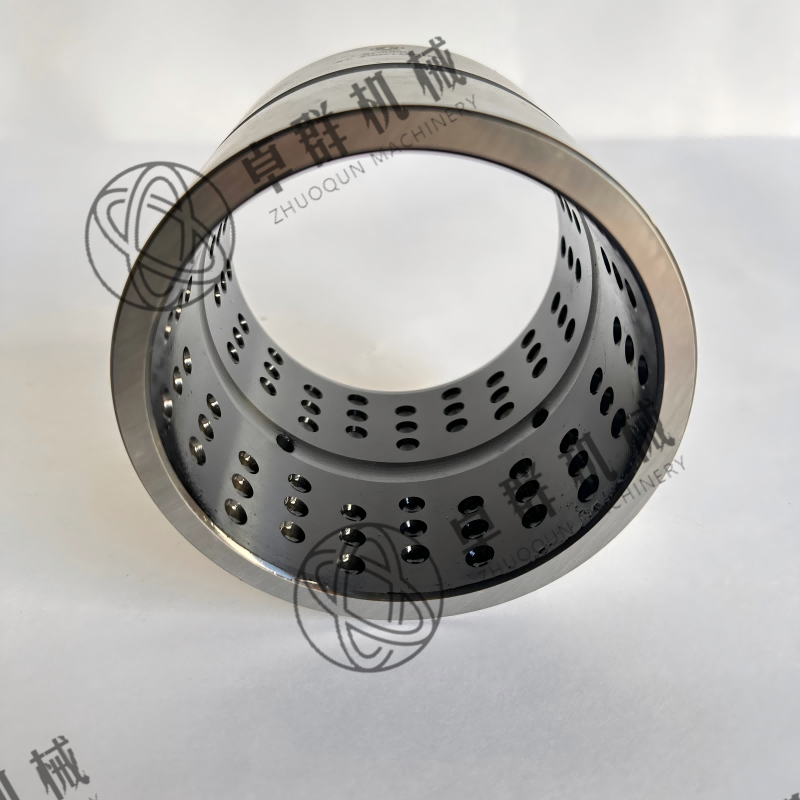

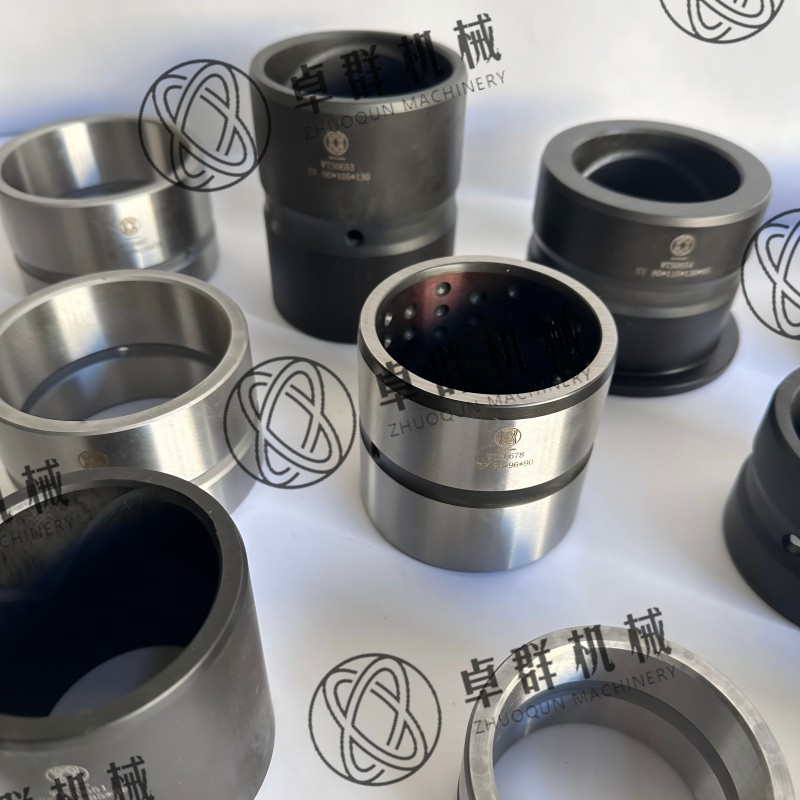

You also need good parts. The OEM 2285654 Custom Steel Bushing for Caterpillar E326/E329 is a good choice. This bushing is made from strong steel and fits your machine well. Picking the right bushing material and size is important. High-strength alloy steel lasts longer and does not wear out fast. Copper-based alloys give good support and help stop damage. Self-lubricating materials are good for machines that move a lot.

Tip: Always check your excavator’s specifications. Using the right parts stops extra repairs and keeps your machine working well.

Safety Measures

You must follow safety steps when you change digger bushes. Turn off the excavator and let out the pressure in the hydraulic system. Use a hydraulic jack or support frame to keep the machine steady. Keep your work area clean so dirt does not get into new parts. Put high-temperature grease on new bushings. Do not make bolts too tight. This stops damage and keeps everything strong.

Note: Safety comes first. Working carefully keeps you and your machine safe.

Excavator Pin and Bushing Removal

Cleaning and Grease Removal

Start by cleaning around the pin and bushing. Use a wire brush to get rid of dirt and debris. Wipe off old grease with a rag. This helps you see the parts better. It also keeps dirt out of new bushings. Clean parts are easier and safer to work with. If grease is hard to remove, use a degreaser spray. Make sure the area is dry before moving on.

Tip: Cleaning first helps stop extra repairs later.

Removal Methods (Hammer, Punch, Welding, Heating)

There are different ways to remove an excavator pin and bushing. The way you pick depends on your machine’s size and how tight the parts are. Here is a table that shows common removal methods, plus their good and bad points:

You can use a hammer and punch if the pin is not stuck. Tap the pin gently until it comes out. If the bushing is tight, heat the outside ring with an oxyacetylene flame. Heat makes the metal expand, so it is easier to remove. Be careful not to get it too hot. For really stuck bushings, use a pulling tool or a hydraulic press.

Welding can also help take out bushings. Put a weld bead inside the bushing. When the weld cools, the bushing shrinks and gets loose. This works when brute force does not. Be careful not to hurt the bore.

Note: Always check the size and shape of your parts before picking a removal method. The right way stops extra damage and makes pin replacement easier.

Inspecting the Bore for Damage

After you take out the pin and bushing, look at the bore. Check for scratches, dents, or wear. Use a flashlight to see inside. If you find damage, fix the bore before adding new parts. Fixing worn bores keeps your excavator running well and stops future trouble. Clean the bore again before putting in new bushings.

Alert: If you skip this step, the fit may be bad and you might need more repairs later.

Now you know how to remove digger bushes safely. Cleaning, picking the best removal way, and checking the bore help you finish the job without problems.

Installing New Bushings and Pins

Bore Cleaning and Prep

You need to get the bore ready before putting in new bushings. A clean bore helps the new parts fit right and last longer. Here are some steps to follow:

1. Measure the bore and mark where the new bushing will go.

2. Drill out any rough spots or old bushing pieces.

3. Clean the bore with a wire brush and degreaser to get rid of dirt and oil.

4. Smooth the edges so there are no sharp spots that could hurt the new bushing.

5. Try fitting the new bushing to make sure it fits tight and even.

Tip: Cleaning and getting the bore ready makes the job easier and helps stop future problems.

Cooling and Fitting Bushings

Cooling the new bushing makes it easier to put in. When you cool it, the bushing gets a little smaller. This helps you slide it into the bore without using too much force. You can use dry ice or liquid nitrogen for this. Always wear gloves and safety gear when you handle very cold things.

After cooling, put the bushing in the bore quickly. As it warms up, it gets bigger and fits tightly. This way works better than heating the bore. It gives you more control and helps keep the digger arm safe.

The OEM 2285654 Custom Steel Bushing is a good pick for this job. It is made for Caterpillar E326 and E329 machines. This bushing helps take in shocks and lowers wear, so your excavator pin and bushing last longer.

Alignment and Lubrication

Getting the bushing and pin lined up right is very important. If you do not line them up, you might get extra wear or damage. You can use special tools to help with this. Portable line boring machines help you get the bore straight and the fit just right. A smooth finish also helps the bushing work well. Try to get a surface roughness of Ra 1.6 micrometers or better. Modern machines can make parts fit together almost perfectly.

Lubrication is just as important as lining things up. Use good grease on the pin and inside the bushing. Grease makes a layer that keeps out water and dirt. It spreads out the load and stops the parts from wearing out fast. Greasing often also saves money and helps stop breakdowns.

Note: Good bushings like the OEM 2285654 lower wear and take in shocks. This helps your machine run smoother and last longer.

When you finish putting in new pins and bushings, check that everything moves easily. Good alignment and grease help your excavator work better and last longer.

Testing and Common Mistakes

Reassembly and Function Test

After you finish replacing pins, you need to check that your digger works as it should. Testing helps you catch problems before they cause damage or downtime. Here are some steps you can follow:

• Move the bucket through its full range. Make sure it extends and retracts without binding.

• Watch for leaks around the rod seal or ports. You should not see any oil coming out.

• Feel the temperature of the working area. It should stay between 40 and 60°C during normal use.

• Listen for strange noises. You do not want to hear knocking, hissing, or any odd sounds.

• Check the cycle time. The bucket should move as fast as the equipment manual says.

• Hold the bucket in one spot under load for at least five minutes. It should not drift or drop.

• Notice how the bucket starts and stops. Movements should be smooth, with no jerks.

• Make sure the bucket lines up right at every point in its working range.

Tip: Careful testing after installing a new excavator pin and bushing helps you avoid bigger problems later.

Pitfalls to Avoid

Many people make mistakes when they replace these parts. You can save money and time if you know what to watch out for:

• Do not let your machine hit hard rocks or obstacles. This can bend pins and crack bushings.

• Always clean the joints after working in wet or muddy places. This stops rust and corrosion.

• Pick the right size and type of pins and bushings. If you use the wrong ones, you might get gaps that are too big or too small.

• Never skip regular maintenance. If you do, friction and wear can get worse and make repair costs go up by as much as 30%.

Improper installation can lead to expensive repairs. Sometimes, you might need to move your equipment to a shop for line boring or welding. This means more downtime and higher costs. Taking care of your digger and using the right parts keeps your machine running longer and saves you money.

You help your digger work well by doing each step. Using OEM parts like the 2285654 Custom Steel Bushing keeps your warranty safe. It also makes your machine more reliable. Checking your digger often and fixing problems quickly stops downtime. It also helps your equipment last longer. Follow this maintenance plan:

1. Grease pins and bushings every 20-30 hours if you use your digger a lot.

2. Clean moving joints once a week.

3. Do not hit hard things.

4. Take care of your digger after it goes in water.

5. Always use the right parts.

Doing these steps all the time saves money. It also makes your work safer and helps you get more done.

FAQ

How often should you replace excavator pins and bushings?

You should check pins and bushings every 500 hours of use. Replace them if you see play, noise, or wear. Regular checks help you avoid bigger repairs.

Can you replace bushings without special tools?

You can use basic tools like a hammer and punch for small machines. For large excavators, you may need a hydraulic press or line boring machine.

Why does my digger need high-quality bushings?

High-quality bushings reduce wear and absorb shocks. They help your digger work smoothly and last longer. Using the right parts also protects other components.

What happens if you ignore worn pins and bushings?

Ignoring worn parts can cause more damage. You may see loose movement, more noise, and even broken arms or buckets. Fixing problems early saves money.

How do you know if a bushing fits correctly?

A correct fit means the bushing sits tight in the bore. The pin should move smoothly without extra play. Always check the fit before final assembly.
