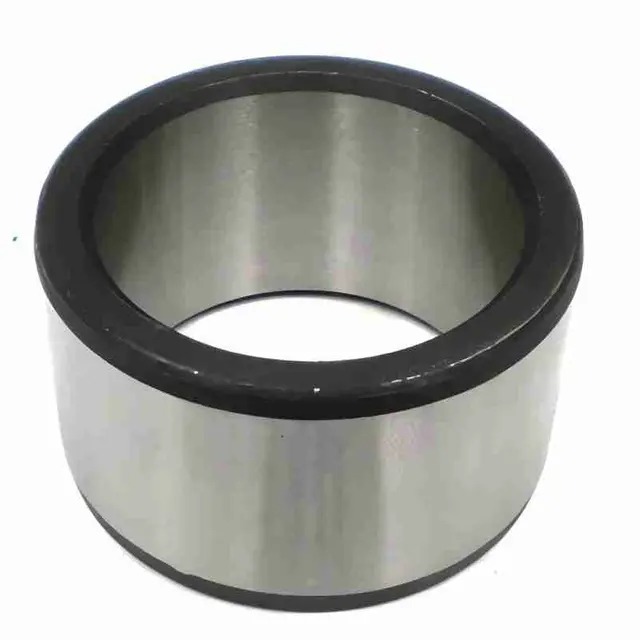

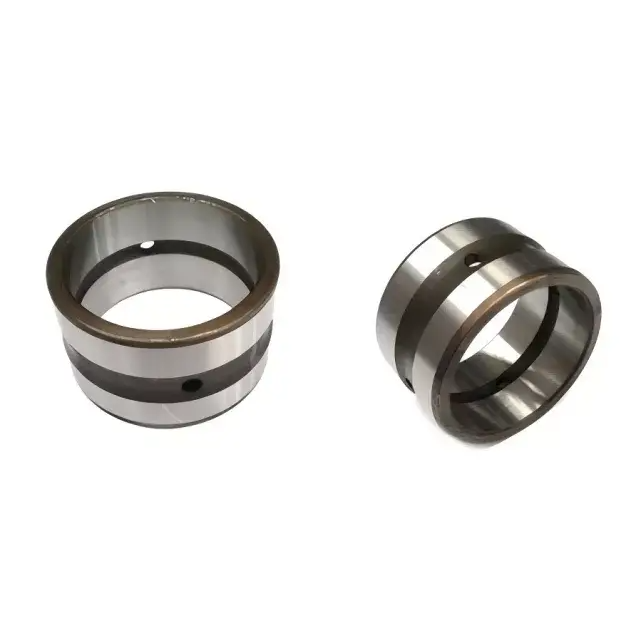

Maintaining heavy machinery requires precision, especially when dealing with the pivot points of a front-end loader. The Loader Bushing is a critical component that bears the brunt of every lift, dig, and dump. Over time, friction and extreme pressure cause these parts to wear down. If you ignore the signs of a failing Heavy duty steel bushing, you risk damaging the expensive pins and the loader arms themselves.
Replacing these components is not just a standard maintenance task; it is a high-stakes mechanical procedure. Doing it incorrectly can lead to severe injury or permanent equipment misalignment. This guide provides an "Expert Insight" into the safest, most efficient way to swap out your worn parts for High precision replacements. We will walk through the tools, the safety protocols, and the technical "pro-tips" that keep your Industrial equipment running smoothly.
Safety is the primary focus of this guide. Before you even touch a wrench, you must ensure the machine cannot move. A falling loader arm carries enough force to crush anything beneath it. You are not just working on a machine; you are managing several tons of suspended metal.
First, park the machine on a flat, level concrete surface. Lower the bucket to the ground or onto heavy-duty jack stands. We recommend using specialized safety struts designed for your specific model. These struts mechanicaly lock the cylinders in place. Never rely solely on the hydraulic system to hold the arms up while you work on a Loader Bushing. Hydraulics can fail without warning due to a blown seal or a drop in pressure.
Follow standard Industrial "Lock-out/Tag-out" (LOTO) procedures. Remove the ignition key and place a warning tag on the steering wheel. Release the residual hydraulic pressure by cycling the control levers after the engine is off. This prevents a "hydraulic injection" injury—where high-pressure fluid penetrates the skin—when you disconnect lines or pins. A prepared workspace is the foundation of a safe Loader Bushing replacement.
Not all bushings are created equal. Before you start the removal, you need to know exactly what you are replacing. Is the current part a Self lubricating type, or does it require manual greasing? Understanding the metallurgy helps you choose a Corrosion resistant option that lasts longer in harsh environments.
Use a High precision digital caliper to check the inner diameter (ID) and outer diameter (OD) of the housing once the old pin is removed. If the housing itself is "egged" or out-of-round, a standard Loader Bushing won't fit correctly. In these cases, you might need a Custom size bushing to compensate for the wear in the loader arm.
Feature | Heavy duty steel (Standard) | Self lubricating (Bronze/Composite) | Corrosion resistant (Coated) |
Best For | High-impact digging | Hard-to-reach pivot points | Wet or salty environments |
Maintenance | Daily greasing required | Maintenance-free | Periodic inspection |
Durability | Very High | High | Extreme |
Cost | Baseline | Premium | High |
Old bushings are often "frozen" in place due to rust and extreme friction. Removing a Heavy duty steel sleeve requires a combination of force and finesse. You must remove the old part without gouging the bore of the loader arm.
One expert trick involves heat. Using an oxy-acetylene torch, you can heat the area around the Loader Bushing. This causes the housing to expand slightly. Alternatively, some pros use "dry ice" or liquid nitrogen inside the bushing to shrink it. The temperature differential breaks the rust bond. Always have a fire extinguisher nearby and keep a close eye on any nearby hydraulic hoses or electrical wires.
Avoid using a heavy sledgehammer if possible, as it can distort the arm. Instead, use a hydraulic puller or a "slide hammer" designed for Industrial use. If the bushing is truly stuck, you can carefully run a bead of weld around the inside circumference of the bushing. As the weld cools, it shrinks the Loader Bushing, making it much easier to tap out with a brass drift.
Installation is the most rewarding part of the process, but it requires the highest level of accuracy. A High precision fit ensures that the load is distributed evenly across the pivot point.
To make the installation effortless and safe, put your new Heavy duty steel bushings in a freezer for at least 24 hours before the job. This shrinks the metal by a few thousandths of an inch. While the bushing is freezing, you can slightly warm the loader arm. This "interference fit" becomes a "slip fit," allowing you to slide the Loader Bushing into place by hand or with very light tapping.
If you must press the bushing in at room temperature, use a High precision anti-seize lubricant. This prevents "galling"—where the metal surfaces tear each other apart during the press fit. Ensure the bushing is perfectly square to the hole. If it starts to go in crooked, stop immediately. Forcing a tilted Loader Bushing will permanently ruin the loader arm housing.
Once the Loader Bushing is seated, the job isn't done. You must ensure the lubrication path is clear. If you are using a Self lubricating model, this step is simpler, but for standard steel, it is the difference between a one-month and a five-year lifespan.
Check the grease zerks (fittings). Often, old grease hardens like concrete inside the channels. Replace the zerks with new ones and pump grease through until you see fresh lubricant emerging from the sides of the new Loader Bushing. This clears out any metal shavings or dust introduced during the installation.
After the pins are reinstalled and the safety struts are removed, operate the loader through its full range of motion without a load. Listen for squeaks or binding. The new High precision parts need a few cycles to "seat" properly. After the first hour of real work, re-grease the joints. This initial "wash" of grease pushes out any microscopic burrs that might have rubbed off during the first few lifts.
Sometimes, even with a new Loader Bushing, the pin won't go in. This usually indicates that the loader arms are slightly bent or the frame is tweaked. For Industrial equipment, even a 2mm misalignment can prevent a successful repair.
Use a long, High precision alignment bar to check the path through both sides of the pivot. If the bar doesn't slide through both bushings, you may need to use a portable line-boring machine. This tool bores out the holes while they are on the machine, ensuring they are perfectly concentric.
On older loaders, the original specifications might no longer apply due to decades of stress. In these cases, a Custom size bushing is often the only way to save the machine. By measuring the oversized hole and ordering a Heavy duty steel bushing with an oversized OD but a standard ID, you can bring an old machine back to factory-spec tolerances without replacing the entire arm assembly.
For loaders working in salt mines, fertilizer plants, or coastal areas, rust is a constant threat. A standard Loader Bushing will seize quickly in these conditions.
Look for bushings that feature specialized coatings like zinc-nickel or chrome plating. These Corrosion resistant layers prevent the "pitting" that leads to premature failure. Furthermore, using a Self lubricating bushing with a sealed end-cap can prevent salt and grit from entering the pivot point entirely.
Experts often add "O-rings" or "V-seals" to the outside of the Loader Bushing assembly. These simple rubber components act as a barrier, keeping the High precision surfaces clean. In Industrial environments where the machine is power-washed daily, these seals prevent water from displacing the vital grease inside the joint.
To keep your machine in top shape, follow this general guideline for Industrial loader maintenance.
Task | Frequency | Focus Area |
Visual Inspection | Every 10 Hours | Look for "play" or silver metal flakes |
Greasing | Every 8-10 Hours | Ensure grease exits both sides of the bushing |
Pin Inspection | Every 500 Hours | Check for grooving or heat discoloration |
Bushing Replacement | As Needed | When "play" exceeds 1.5mm |
Replacing a Loader Bushing is a fundamental skill for any heavy equipment mechanic. By following a structured, safety-first approach, you protect both the technician and the machine's longevity. Remember that using High precision, Heavy duty steel components is an investment, not just a cost. It prevents the "domino effect" of mechanical failure that can sideline a project for weeks. Stay diligent with your lubrication, use the right tools for extraction, and never compromise on safety.
Q1: How do I know when my Loader Bushing needs replacement?
A: Watch the pivot points while someone else slowly moves the loader. If you see the pin "jump" or move independently of the arm, the bushing is worn. Also, look for "red dust" (oxide) coming out of the joint, which indicates metal-on-metal wear.
Q2: Can I weld a Loader Bushing into place if it’s loose?
A: No. Welding a bushing destroys its heat treatment and makes future replacement nearly impossible. If the fit is loose, you should use a Custom size bushing or have the housing line-bored.
Q3: Is a Self lubricating bushing better than a greasable one?
A: It depends. Self lubricating bushings are great for hard-to-reach areas, but for high-impact, Heavy duty steel applications, a greasable steel bushing often handles the shock loads better.
