How Do You Choose Pin Shaft?

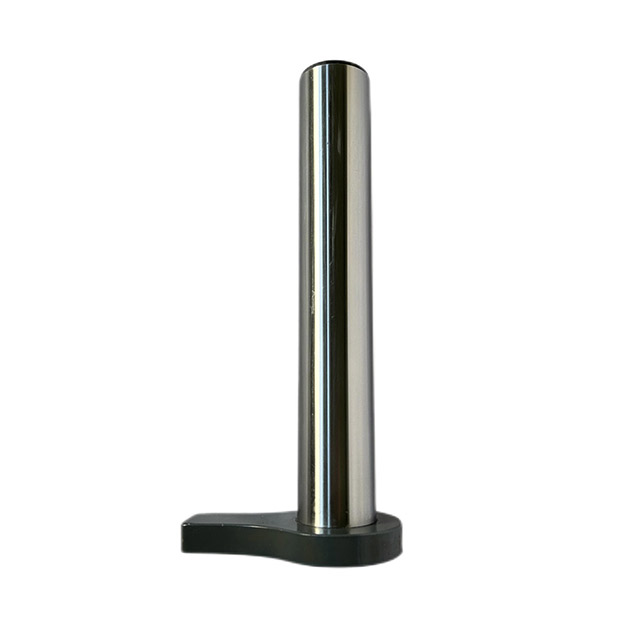

A failed mechanical fastener often leads to catastrophic assembly failure. Unplanned downtime and severe safety risks quickly follow. Machine operators and plant managers understand these stakes well. Selecting the correct component is rarely a simple catalog lookup. Instead, it requires careful engineering judgment. You must balance dynamic loads, harsh environmental conditions, and precise material tolerances. The right choice keeps heavy machinery operating smoothly. A poor choice stops production entirely.

We built this evidence-based evaluation framework for engineers and procurement teams. You will learn exactly how to finalize your design criteria. This guide walks you through practical load assessments and rigorous supplier vetting processes. By the end, you will confidently source reliable manufacturing partners. You can then specify parts correctly on your first attempt.

Key Takeaways

• Load Dictates Design: Shear strength and dynamic vibration are the primary baseline metrics for selection.
• Tolerances Impact Assembly: Mismatched chamfers and surface finishes drastically increase installation costs and galling risks.
• Application Specificity Matters: Heavy-duty applications require bespoke solutions (e.g., custom steel pins) over off-the-shelf spring pins.
• Supplier Traceability is Non-Negotiable: A reliable supplier must provide material certifications and verifiable quality control documentation.

Assess Operational Load and Environmental Realities

Engineers must rigorously evaluate the physical forces acting on the assembly. You cannot rely on static weight estimates alone. Machine components experience complex, multi-directional stresses during regular operation. A robust pin shaft survives these conditions only when designed for specific operational realities.

Calculate Shear and Fatigue Loads

Shear strength determines whether a fastener will survive its baseline mechanical duties. You must accurately define the primary force applied to the joint. Design failures often occur when teams misunderstand the difference between load types.

1. Define the primary force: Determine if the application uses single shear or double shear. Single shear places stress on one cross-sectional plane. Double shear distributes the load across two planes. Double shear setups generally offer significantly higher load capacities.
2. Account for dynamic loading: Static weight calculations remain insufficient for moving machinery. You must measure dynamic shock loading. Sudden impacts multiply the effective force on the component.
3. Assess vibration fatigue: Continuous vibration causes microscopic material fractures over time. High-frequency movement demands materials possessing superior fatigue resistance.

Evaluate Environmental Degradation

Environmental factors destroy components just as quickly as mechanical stress. You must identify all atmospheric and chemical threats early in the design phase.

• Identify corrosion risks: Chemical exposure, saltwater immersion, and extreme weather accelerate rust. Galvanic corrosion occurs when mismatched metals interact. You must choose compatible alloys or specify protective coatings.
• Determine temperature ranges: Operating temperatures drastically alter material behavior. Extreme cold causes severe metal embrittlement. Conversely, intense heat can cause a loss of temper. The material loses its designated hardness and deforms under load.
• Analyze abrasive contamination: Dust, silica, and grit act as grinding compounds. They infiltrate clearance gaps and accelerate surface wear.

Mitigate Implementation Risks

Many design teams make a critical common mistake. They over-specify hardness to combat surface wear. This strategy introduces a massive implementation risk. Extreme hardness inherently creates material brittleness. A highly brittle component cannot absorb sudden impacts. It will suffer a sudden, catastrophic shear failure under shock loads. You must balance surface hardness against core ductility to prevent these dangerous fractures.

Finalizing Pin Shaft Specifications and Materials

Specifying the right material and dimensional characteristics requires precision. Vague blueprints lead to poor manufacturing outcomes. You need to document every physical attribute clearly. This prevents miscommunication during the production process.

Material Selection Matrix Chart

Defining Crucial Specifications

Once you select the baseline material, you must lock in the mechanical dimensions. Properly defining your pin shaft specifications guarantees successful assembly and long-term performance.

Dimensional Tolerances

Specify exact diameter and length tolerances. These numbers dictate the fitment type. You will typically choose between an interference fit or a clearance fit. A standard h6 or h7 grinding specification ensures tight fitment. Loose tolerances cause vibration and rapid fretting wear. Overly tight tolerances make installation impossible without damaging the housing.

Surface Finish and Hardness

You must carefully balance surface hardness against core ductility. The surface needs sufficient hardness to resist abrasive wear. However, the inner core must remain ductile to absorb operational shock. We highly recommend induction hardening techniques for this purpose. Induction hardening creates a tough outer shell. It leaves the core flexible and impact-resistant. You should also specify the exact Ra (Roughness Average) value to optimize bearing surface contact.

Chamfer Design

Engineers frequently overlook chamfer design. The end geometry matters immensely during assembly. Specify precise edge radii. A well-designed 15-degree or 30-degree chamfer guides the component into its housing smoothly. Mismatched or sharp edges cause severe galling. Galling damages both the fastener and the expensive gear housing during automated or manual pressing.

Standard vs. Custom: Matching Pin Type to the Application

You must decide between off-the-shelf fasteners and purpose-built components. Standard catalogs offer quick availability. However, demanding industrial environments often exceed standard component capabilities. You must objectively evaluate your operational stress levels before deciding.

Standard Pins (Roll, Spring, Dowel)

Standard fasteners serve specific, well-defined purposes in light engineering. They work perfectly when applied correctly.

• Coiled and Slotted Spring Pins: These adapt to uneven hole tolerances. They work best for light-to-medium duty tasks. You can use them primarily for alignment purposes or low-torque fastening.
• Solid Dowel Pins: Dowels provide excellent precise alignment in static assemblies. They hold machined parts in perfect registration.
• Sacrificial Shear Points: Standard pins often act as intentional mechanical fuses. They shear under excessive load to protect more expensive gearboxes from destruction.

Despite their utility, standard items carry severe limitations. They remain highly prone to deformation under high-torque applications. Extreme vibration causes spring pins to walk out of their housings. You should never use them for primary load-bearing in heavy machinery.

Heavy-Duty and Custom Applications

Heavy machinery requires specialized equipment built to withstand multi-directional stress. Off-the-shelf options simply fail under these brutal conditions. Construction, mining, and agricultural machinery demand bespoke engineering solutions.

Consider heavy earth-moving equipment. Sourcing a custom steel pin excavator bucket pin involves complex requirements. Standard catalogs cannot provide the necessary features. A bespoke component requires specific grease grooving to ensure constant lubrication. It demands high-grade alloy steel to survive crushing forces. It also requires precise heat treatment to resist abrasive dirt and rock impacts. A custom machined component requires precise engineering upfront. However, this choice directly prevents catastrophic machinery failures and massive operational delays in the field.

Vetting a Reliable Pin Shaft Supplier

Your design is only as good as your manufacturing partner. A brilliant blueprint fails if the factory cannot hold the required tolerances. You must vet potential partners using rigorous criteria. Transparency and technical capability separate top-tier manufacturers from unreliable vendors.

Manufacturing Capabilities

Do not assume a facility can meet your precision requirements. You must verify their specific machinery and internal processes.

1. Verify tolerance control: Ask for proof regarding their grinding capabilities. Can they reliably hold h6 or h7 specifications across a batch of ten thousand units? Request statistical process control (SPC) data to verify their consistency.
2. Assess heat treatment facilities: Look for in-house heat treatment and surface coating capabilities. Outsourcing these steps increases lead times. It also introduces massive quality variability. In-house control ensures the exact specified hardness depth is achieved every single time.

Quality Assurance and Compliance

Quality control cannot be an afterthought. It must be built into the production lifecycle. Demand comprehensive material test reports (MTRs) before accepting any shipment. Verify their ISO or DIN compliance records. A credible pin shaft supplier operates with complete transparency. They will gladly share their non-conformance rates. They will also demonstrate their testing methodologies. Look for suppliers utilizing advanced non-destructive testing (NDT), such as ultrasonic scanning or magnetic particle inspection. These tests detect internal micro-fractures invisible to the naked eye.

Next-Step Actions for Shortlisting

Once you identify a promising manufacturer, take concrete steps to finalize the relationship. Never place a massive production order based on a digital brochure.

• Request physical prototypes: Order a small batch for rigorous fitment testing. Install them in your actual housing to verify chamfer angles and interference fits.
• Audit supply chain stability: Investigate their raw material sourcing. Ensure they can maintain consistent lead times for high-volume orders, even during global market fluctuations.

Conclusion

Choosing the right mechanical component always involves an engineering compromise. You must carefully balance ultimate shear strength, surface wear resistance, and manufacturing feasibility. Relying on guesswork or outdated catalogs invites catastrophic failure.

We established that load dynamics and environmental realities dictate your baseline materials. We also explored why precise dimensional tolerances and chamfer designs prevent expensive assembly damage. Careful specification documentation combined with a rigorously vetted supplier guarantees long-term assembly reliability. Never compromise on material traceability or quality assurance testing.

Take action today to protect your machinery. Promptly submit your technical drawings and application requirements to our engineering team. We will provide a comprehensive feasibility review and a detailed production quote tailored to your exact specifications.
