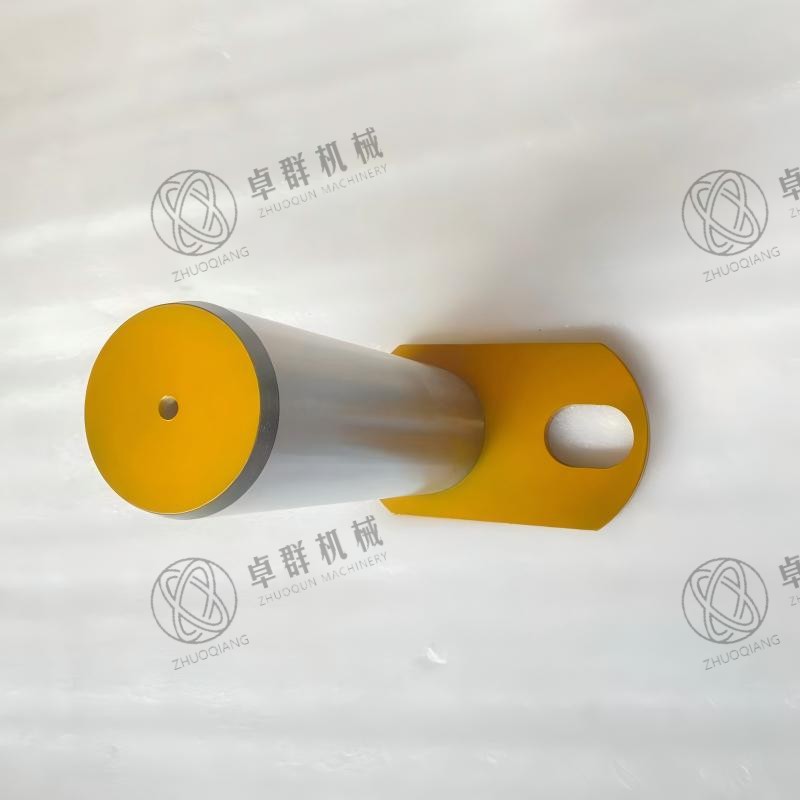

How To Choose Excavator Pin Shafts By Fit And Material

Equipment downtime and premature wear caused by improperly specified pins eat directly into project margins. Every hour a machine sits idle waiting for linkage repairs translates to stalled earthmoving schedules and lost productivity. Selecting the right excavator pin shaft is not about finding the cheapest steel available. Instead, it is a delicate balancing act between surface hardness, core toughness, and dimensional accuracy. Operators must match the physical properties of the part to the immense shear loads it will face in the field. This article provides a comprehensive technical evaluation framework. You will learn how to specify materials, heat treatments, and tolerances when ordering replacement or customized parts. We will guide you through the process of keeping heavy machinery operational, reducing unexpected catastrophic failures, and maximizing component lifespan across the most demanding excavation sites.

Key Takeaways

• Material is baseline, treatment is critical: High-tensile steels like 4140 or 4340 require specific induction hardening to prevent snapping under shear loads.
• Differential hardness prevents galling: An excavator pin should typically be harder than its mating bushing to localize wear on the cheaper, easier-to-replace component.
• Fit dictates lifespan: Even premium materials will fail prematurely if improper tolerances allow abrasive ingress or structural "slop."
• Application dictates specs: Chromed surfaces are essential for highly corrosive or abrasive environments, while standard greaseable pins suffice for standard digging.

Evaluating Steel Alloys for Construction Machinery Pins

The core trade-off in heavy equipment metallurgy lies between high surface hardness and high core ductility. You need a highly wear-resistant exterior to survive constant abrasion from silica dust and rock. However, you also need a ductile, flexible core to absorb heavy impact and sudden shock loads. If a component lacks this internal flexibility, it will shatter under heavy breakout forces. Selecting the right alloy forms the foundation of any reliable linkage system.

You must evaluate different steel grades based on their chemical composition and field capabilities. Below is a structural comparison chart outlining the most common alloys used in earthmoving machinery.

When reviewing these options, 1045 or 1050 carbon steel provides a basic solution only for secondary pivots. It lacks the complex alloying elements necessary to withstand high mechanical stress. Moving up the performance tier, 4140 chromoly steel serves as the baseline for serious earthmoving. The addition of chromium and molybdenum allows it to reach high tensile strengths while maintaining excellent machinability. Operators find it ideal for standard boom and stick connections.

For the most brutal environments, 4340 or EN24T alloy steel is the superior engineering choice. Its higher nickel content provides unmatched impact resistance, even in sub-zero working conditions. You will need this specialized alloy to handle the extreme shear loads generated when prying solid bedrock or operating heavy-duty ripper attachments.

Surface Treatments: Hardening and Plating Selection

Raw steel alone cannot survive the abrasive reality of a construction site. Surface treatments define exactly how well a linkage resists daily friction and environmental degradation. These physical treatments transform a machined piece of steel into a durable component.

Induction hardening is a highly targeted heat treatment process essential for linkage longevity. During your technical evaluation, look for a localized surface hardness measuring 55–60 HRC on the Rockwell scale. The hardened outer layer should penetrate to a depth of 3–5mm. This precise depth shields the exterior from abrasion while leaving the inner core soft enough to bend slightly under pressure. A major implementation risk occurs if manufacturers through-harden the parts. Through-hardened metals become overly brittle. They are highly prone to catastrophic failure and will snap suddenly under heavy shock loading, often trapping the machine in the field.

For highly specific environments, specifying a chromed linkage pin offers distinct operational advantages. Hard chrome electroplating provides superior corrosion resistance while establishing a remarkably low-friction surface. You should prioritize this plating for muddy, highly acidic, or aggressively abrasive locations like mining quarries. Standard greased surfaces degrade rapidly under these harsh conditions. In such environments, a thick layer of industrial hard chrome acts as an impenetrable shield, rejecting corrosive mud and extending maintenance intervals significantly.

Clearances, Tolerances, and the Pin-to-Bushing Fit

Perfect metallurgy means absolutely nothing without precision machining. The dimensional fit directly dictates the lifespan of the entire joint assembly. Even minor deviations in machining tolerances cause rapid mechanical degradation.

Tolerance standards require strict evaluation before installation. A proper bucket pin shaft fit should require lightly tapping it in with a brass mallet. It should never demand excessive force from a sledgehammer, which indicates a problematic interference fit. An overly tight fit will bind the joint and prevent proper grease distribution. Conversely, the part should not drop in freely. A loose fit allows structural "slop," leading to point-loading and inviting abrasive silica dirt straight into the mating surfaces.

You must rigorously apply the differential hardness rule across your machinery. Always ensure the internal shaft is noticeably harder than the surrounding bushing. Mismatched or identical hardness levels between these two components inevitably lead to galling. Galling occurs when identical metals undergo cold welding under extreme contact pressure, tearing chunks of steel from each other. By maintaining a differential hardness, you force the bushing to act as the sacrificial wear part, protecting the more expensive core linkage.

Internal lubrication paths also demand close inspection. You must assess the engineering design of internal grease galleys. Poorly machined cross-holes create dangerous stress risers in the steel grain. These sharp internal corners are exactly where the metal is most likely to snap under heavy bending loads. Well-engineered components feature smooth, chamfered grease holes that distribute mechanical stress evenly and ensure uninterrupted lubrication flow.

Specifying a Custom Pin Shaft vs. OEM Replacements

Fleet managers constantly face the choice between buying from the original equipment manufacturer or seeking customized machining solutions. Each procurement route has distinct operational benefits depending on the condition of your machinery.

You should purchase OEM replacements when dealing with standard, predictable wear intervals. Factory parts ensure strict warranty compliance and drop perfectly into factory-fresh equipment lugs. If your machinery is relatively new and the mounting bores remain perfectly round, OEM components represent the safest, most efficient choice.

However, aging equipment often requires alternative approaches. You need to machine a custom pin shaft when dealing with noticeable structural "slop." If the boom or stick lugs have worn out of round, a standard OEM part will immediately rattle and accelerate damage. In this scenario, you must commission an oversized custom unit to restore a tight, factory-like fit. You will also need custom fabrication when retrofitting specialized aftermarket attachments to legacy machines.

When selecting a local or specialized machine shop for custom work, use the following evaluation criteria:

1. Verify their capabilities for precision cylindrical grinding, which is mandatory for achieving exact H7/g6 tolerance control.
2. Confirm they perform in-house or certified post-machining heat treatments, specifically localized induction hardening.
3. Check their material certification process to guarantee they actually cut from true 4140 or 4340 grade bar stock.
4. Assess their ability to machine accurate, deeply chamfered grease galleys without leaving internal burrs or stress risers.

Maintenance Realities and Risk Mitigation

Advanced metallurgy and precision engineering only delay the inevitable wear of earthmoving; they do not prevent it entirely. Strict operational discipline in the field remains your strongest defense against catastrophic linkage failure.

Lubrication discipline is entirely non-negotiable. Material upgrades and chrome plating do not replace the fundamental need for daily greasing. Pumping fresh grease into the joint performs two critical functions. First, it maintains the necessary fluid film between moving heavy parts. Second, the outward flow of fresh grease actively flushes out destructive silica dust, trapped moisture, and microscopic steel shavings.

Operators must conduct regular visual inspections to identify structural problems early. You can spot specific warning signs during daily machine walkarounds. Chrome flaking strongly indicates severe impact damage or extreme abrasive wear. Stepped, uneven wear patterns suggest the part has seized and is spinning destructively inside the equipment lug rather than rotating smoothly inside the bushing. Blue discoloration warns of extreme heat buildup resulting from severe friction and a total lack of lubrication.

Line boring considerations are absolutely crucial for aging equipment. If you notice your equipment lugs are already ovalized from years of abuse, installing a brand new construction machinery pin will not solve the underlying structural problem. The new, perfectly cylindrical part will immediately begin to bend and wear unevenly against the distorted lug. In these cases, professional line boring must precede any new installation to restore a true, perfectly aligned cylindrical bore.

Conclusion

• Match Alloy to Load: Always select 4140 steel for standard digging operations, but upgrade to the higher yield strength of 4340 steel for aggressive rock quarrying and ripper attachments.
• Select Treatments by Environment: Specify 3–5mm induction hardening for standard impact resistance, and prioritize hard chrome plating when working in highly acidic or muddy terrain.
• Control the Tolerance: Ensure a precise mallet-tap fit during assembly to prevent abrasive dirt ingress and avoid binding the lubrication channels.
• Audit Failure Patterns: Take immediate action by reviewing your scrap pile. If components are snapping cleanly, you need better core ductility. If they show deep scoring, you require higher surface hardness and stricter greasing protocols.

FAQ

Q: What is the standard hardness for an excavator bucket pin?

A: Surface hardness typically ranges from 50 to 60 HRC on the Rockwell scale. This hardened outer layer resists heavy abrasion. Meanwhile, the internal core remains around 25-35 HRC, ensuring the component retains enough flexibility for critical impact absorption without shattering.

Q: Why do my linkage components keep breaking instead of wearing down?

A: Snapping usually indicates a material that is through-hardened and overly brittle. It can also stem from a poor interference fit causing severe bending stress, or a mismatched application, such as utilizing weaker 1045 carbon steel in a heavy-duty rock bucket.

Q: Can I use 4140 steel without heat treatment for an excavator pin?

A: No. Unhardened 4140 steel will wear out exceptionally fast against standard hardened bushings. Precise induction surface hardening is strictly necessary to achieve proper joint longevity and effectively resist the aggressive abrasive conditions found on construction sites.

Q: Should the internal shaft be harder than the surrounding bushing?

A: Yes. The bushing is explicitly designed as the sacrificial wear part in the linkage assembly. If the internal shaft is softer, it will degrade first, leading to galling and requiring a much more difficult, labor-intensive, and expensive replacement process.
