Ordering the wrong replacement parts halts your job site immediately. Extended machine downtime, expensive return freight, and cascading project delays quickly follow. You might think ordering by make, model, or year is safe. It is actually a huge risk. Previous owners frequently install aftermarket modifications. You will often encounter mismatched buckets. Quick couplers and other rapid attachments completely alter original factory dimensions. You cannot rely on standard manuals alone.
The solution is physical verification. A precise, standardized methodology for capturing physical dimensions ensures exact-fit replacements on your very first order. Proper excavator pin and bushing measurement eliminates guesswork. In this guide, we break down exactly how to gather these metrics. You will discover the critical tools required. We also cover how to assess structural wear and translate your numbers into correct catalog orders.
Heavy equipment frequently changes hands. Second-hand machines rarely maintain their original factory configurations. Many operators install non-OEM buckets or modify their linkages for specialized jobs. Different quick hitches heavily alter the original pin specifications. A serial number only tells you how the machine left the factory. It does not reflect its current configuration.
Guessing your dimensions creates a massive financial drain. Imagine receiving a 65mm pin for a 70mm boss assembly. You cannot install it. Your machine sits idle. You must continue paying idle operator wages. You then face expedited shipping costs to return the wrong part. You must also pay premium overnight shipping for the correct replacement. These immediate cash losses rapidly destroy your project margins.
You can identify reliable suppliers by how they handle your order. Reputable vendors always request physical measurements. They rarely process orders purely on serial numbers. When a supplier asks you to verify your dipper gap, they prove their reliability. They want to ship the right part the first time.
Factory Specifications vs. Real-World Variables
| Reference Method | Accuracy Level | Common Pitfalls |
|---|---|---|
| Make and Model Year | Low | Ignores aftermarket buckets and custom linkages. |
| Serial Number lookup | Medium | Fails if a previous owner changed the quick coupler. |
| Physical Caliper Measurement | High | Requires proper cleaning to avoid false readings from rust. |
You need professional tools to gather professional data. A standard toolbox tape measure will only lead to ordering errors.
Calipers are the non-negotiable standard for internal and external dimension logging. You must measure in exact millimeters. Excavator tolerances are incredibly tight. A difference of just one millimeter determines whether a part fits or fails. Digital calipers provide immediate, readable accuracy. Vernier calipers work equally well if you know how to read the mechanical scale.
You cannot measure over dirt. This is a critical implementation reality. Excavator joints pack full of caked grease, heavy rust, and compacted soil. These contaminants add false millimeters to your caliper readings. False readings guarantee fitment failure. Thoroughly scrub the measurement zones. Use an industrial degreaser and a stiff wire brush to expose bare metal.
You should reserve measuring tapes strictly for broad dimensions. Use them to measure overall pin length. They also work for finding dipper gaps. You must never use a tape measure for diameters. You physically cannot capture a true cylindrical diameter using a flat, flexible tape.
Following a strict sequence prevents simple oversight errors. Secure your calipers and begin logging these distinct metrics.
You must measure the extreme ends of the pin. Do not measure the center. The center acts as the primary "wear zone." It carries the entire bucket load. Friction grinds the center down over time. If you measure the middle, you will record a smaller number than the original factory specification. This leads to undersized replacement orders. Always measure the unworn outer edges to find the true original diameter of your excavator bucket pin.
Measure the part end-to-end. You need to understand the difference between usable length and total overall length. Usable length spans from under the head to the retaining hole. Total length includes the head and the protruding tail. Record both numbers. Your supplier will need them to ensure the retaining bolts align properly.

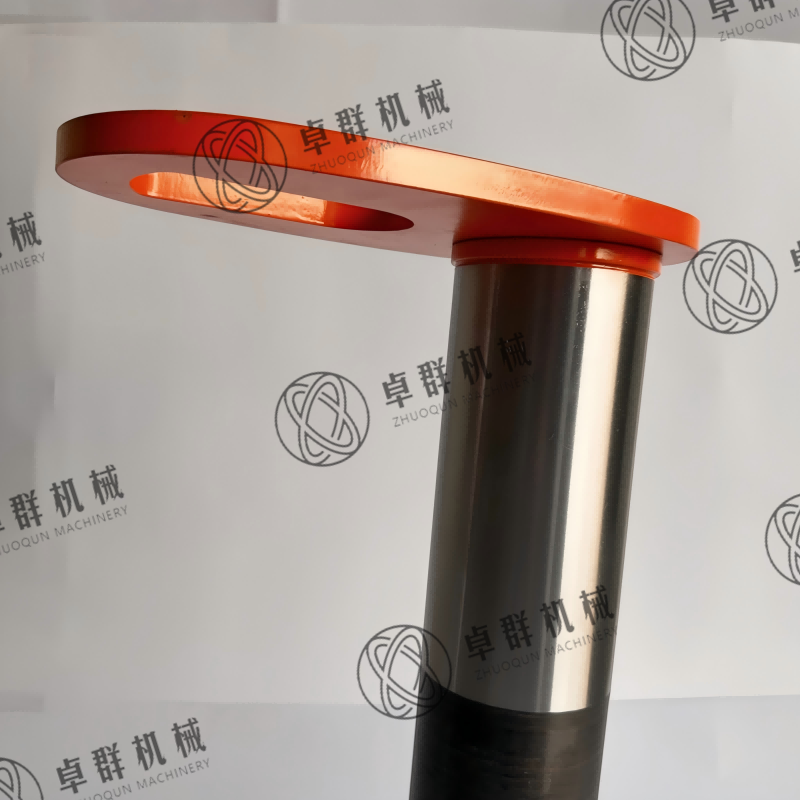

Examine how the machine secures the part. Identify the bolt-hole diameters. Check the flag positioning on the head. You also need to verify the lubrication routing. Is the part center-greased or end-greased? You must ensure your replacement matches the existing grease zerk locations. Proper lubrication paths keep your joints alive.
Bushing measurements require internal caliper readings. This step demands extra patience and cleanliness.
Clean the internal bore thoroughly. Insert your caliper jaws into the opening. Expand them until they touch the inner walls. You must measure at multiple angles. Start at the 12-to-6 o'clock position. Then measure the 9-to-3 o'clock position. Heavy digging creates oval wear patterns. If your numbers differ widely, the internal structure is severely distorted.
You need this metric if you are extracting the old unit from the bucket boss. Getting the OD wrong ruins the installation. Proper caliper placement guarantees a proper interference fit. The new part must press-fit tightly into the housing. If the OD measurement is too small, the unit will spin inside the boss and destroy the bucket frame.
Measure the cylinder from edge to edge. Look closely at how it sits inside the bucket boss. Note if it sits entirely flush. Sometimes it is recessed. Other times it sits proud, extending slightly past the metal frame. When you buy an excavator bucket pin,bushing dimensions must accommodate these specific clearances. Incorrect lengths prevent the dipper arm from sliding into place.
Operators often struggle to decide exactly when to swap their parts. Waiting too long causes catastrophic structural damage. Replacing too early wastes good metal.
Clearance tolerances are highly restrictive. We usually measure acceptable play in fractions of a millimeter. You should test the machine dynamically. Perform a bucket curl while watching the joints. Excessive visible movement indicates a compromised joint. If you hear loud clunking sounds during operation, the structural integrity is already gone. You must intervene immediately.
Sometimes parts look mathematically functional on a caliper. Visual damage tells a different story. Look for deep scoring along the steel. Check for galling, where metal has fused and torn away. Step-wear creates distinct, uneven ridges across the surface. Any of these visual indicators dictate immediate replacement. Damaged surfaces chew through grease and destroy mating parts rapidly.
You should always replace mating components simultaneously. Never put a brand new pin inside a badly worn housing. The old, out-of-round housing will apply uneven pressure. This accelerates localized wear on the new steel. Mating new metal to old metal voids your investment. Systematic replacement restores the factory-tight geometry your machine needs.
Best Practices for Inspection:
Once you gather accurate data, you must navigate supplier catalogs successfully.
Good suppliers organize their inventory by precise millimeter schemas. You will usually see formats like 45mm x 300mm. The first number represents the diameter. The second represents the overall length. Check your center-to-center metrics if you are buying a complete linkage set. Match your numbers exactly to the product listing. If you measure 44.7mm on an unworn end, you are looking at a standard 45mm part. Manufacturers use standard metric or imperial sizes.
Dimensions only solve half the problem. Steel quality determines how long the part survives. Untreated mild steel will bend or shear under heavy breakout forces. You must guide your purchasing toward induction-hardened parts. Check the Rockwell hardness rating. You should look for steel hardened to HRC 50-60. This rating ensures a tough core with a highly wear-resistant outer shell.
Consolidate your logged dimensions. Send this specific data to a vetted heavy equipment parts supplier. Do not just send them a photo of your machine. Provide your pin diameter, pin length, dipper gap, and retaining style. This exact submission guarantees a successful purchase. It allows technical sales teams to verify the fitment before boxing the order.
Common Mistakes to Avoid:
Accurate measurement is the fundamental first step in any successful undercarriage and attachment maintenance routine. You cannot bypass this process if you want your machine to run reliably. Relying on model numbers alone exposes you to unacceptable downtime risks. Taking control of your data solves the problem permanently.
Remember these core takeaways before your next maintenance cycle:
Take your calipers out to the yard today. Capture your exact dimensions. Once you have your data in hand, search our part database. You can also contact our technical sales team directly with your measurements to secure a guaranteed, exact-fit replacement.
A: You can measure the length and the exposed ends for diameter, but extracting the pin is highly recommended to inspect for center wear and verify bushing condition.
A: Pins wear down. If the unworn end measures close to a standard round number (like 45mm) but slightly under, it is almost certainly a 45mm pin. Parts are manufactured to standard metric or imperial sizes.
A: Measure the inside of the bushing for pin fitment. If you are replacing the bushing itself, you must measure the outside of the old bushing (or the inside of the empty bucket boss) to ensure the new bushing will press-fit correctly.
