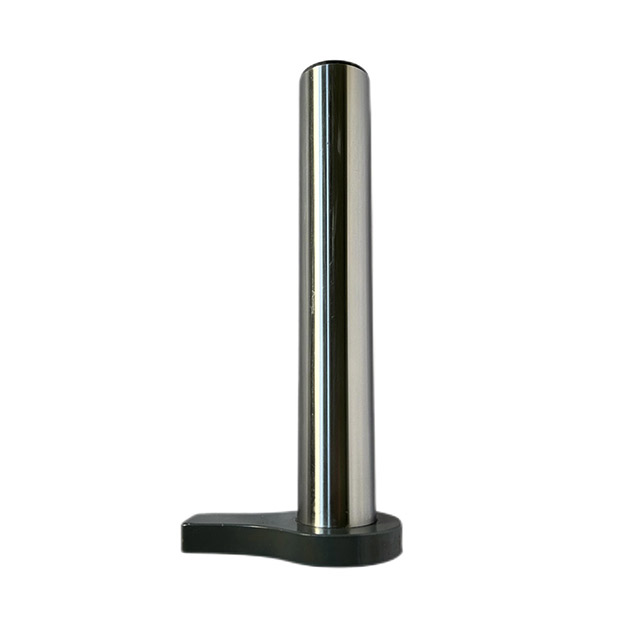

What Specifications Matter When You Source Excavator Pin Shaft?

Every minute your heavy equipment sits idle eats into project margins. Premature pin failure causes expensive, measurable operational losses. It is never just a minor maintenance issue. You face unscheduled downtime and soaring labor costs. Finding the right replacement part goes far beyond basic dimension matching. Sourcing an excavator pin shaft demands careful technical scrutiny. You must evaluate metallurgy, surface treatments, and machining tolerances. These factors guarantee longevity under immense shear stress. We designed this guide to help procurement and maintenance managers. You will discover a robust technical evaluation framework here. We show you how to assess specifications effectively. You will also learn to request accurate quotes and confidently vet vendors. Keep reading to build a more resilient fleet.

Key Takeaways

• Material grade and heat treatment depth (not just surface hardness) are the primary indicators of pin shaft durability.

• Precision machining tolerances dictate compatibility with bushings, directly preventing galling and uneven wear.

• Selecting a reliable excavator pin shaft supplier requires auditing their quality control reports (e.g., ultrasonic testing, material certs) rather than competing on unit price alone.

• Custom applications demand specific grease groove designs and flange configurations based on the exact machine operating environment.

The Cost of Underspecified Components in Fleet Operations

Equipment downtime drains your operational budget fast. Underspecified components inevitably shear or wear out rapidly. This causes massive financial headaches for fleet managers. Unscheduled downtime stalls entire job sites. Labor costs skyrocket when mechanics extract seized pins. Furthermore, broken pins cause severe collateral damage. They routinely ruin bucket ears and connecting linkages. You then have to line-bore the structural steel. This specialized repair work takes days to complete. It pulls your most productive excavators off the revenue-generating line.

What does a successful procurement look like? First, you need predictable wear cycles. Your components must align perfectly with scheduled maintenance windows. When parts last predictably, mechanics can schedule replacements during routine oil changes. This concurrent maintenance strategy maximizes machine availability. Zero catastrophic failures is the ultimate goal. Achieving this requires looking at the whole assembly. You must approach the excavator linkage as a holistic system.

Pins do not operate in isolation. They function within a dynamic joint system alongside bushings and grease. You must evaluate pin hardness alongside bushing hardness. If you ignore this balance, asymmetrical wear destroys the joint quickly. Poorly matched components fight against each other. One part usually gouges the other during heavy articulation. This accelerates the degradation cycle dramatically. You end up replacing parts twice as often. Smart fleet operations avoid these traps entirely. They match metallurgical properties deliberately to control the wear rate.

Core Excavator Pin Shaft Specifications to Evaluate

We must compare common steel grades closely during material selection. Medium-carbon alloy steels dominate the heavy machinery industry. Grades like 4140, 4340, or 42CrMo serve as standard benchmarks. They offer exceptional tensile strength. They also handle extreme high-stress applications beautifully. These alloys respond exceptionally well to heat treatment. Manufacturers rely on them to balance hardness and ductility. Choosing the right steel grade sets the foundation for durability. Inferior mild steels simply warp under massive breakout force.

You must understand industrial hardening processes. Through-hardening treats the entire component uniformly. It makes the part hard but potentially brittle. Induction hardening creates a hard outer shell instead. Heavy machinery requires induction hardening for optimal performance. We recommend an optimal Rockwell Hardness range of HRC 55-60 on the surface. However, the internal core must remain tough and ductile. A ductile core absorbs heavy shock loads safely. After the initial hardening phase, components undergo careful tempering. Tempering relieves internal stresses generated during the rapid quenching process.

OEM-level tolerances are absolutely non-negotiable. Manufacturers often hold these tight dimensions between 0.01mm to 0.05mm. Low surface roughness (Ra) matters equally in high-friction joints. Smooth finishes ensure proper fitment during field installation. They also retain essential lubrication within the joint interface. Poor tolerances lead to rapid galling and intense heat buildup.

When you build your Request for Quote (RFQ) checklist, precise details matter. Properly documenting your required excavator pin shaft specifications ensures suppliers understand your exact needs. You eliminate guesswork and secure accurate pricing instantly.

Common Steel Grades Comparison

Standard Replacements vs. Custom Steel Pin Excavator Bucket Pin Requirements

Standard off-the-shelf parts work perfectly for routine fleet maintenance. They suit common models from Caterpillar, Komatsu, and John Deere. In these cases, OEM sizing charts apply strictly. You just verify the part number and place the order. Fleet managers love standard pins for their immediate availability. Warehouses stock them heavily, reducing shipping delays. You can swap them quickly during regular service intervals.

However, many real-world situations demand tailored solutions. Older machinery often features worn or bored-out bucket ears. These degraded joints require oversized pins to fit tightly. Standard sizes will simply rattle and destroy the joint further. Severe-duty applications also require special engineering designs. Mining and quarrying environments inflict massive punishment on linkages. You might need specialized grease groove mapping for harsh conditions. You might also require heavy-duty anti-rotation flags. In these demanding scenarios, a custom steel pin excavator bucket pin becomes absolutely essential.

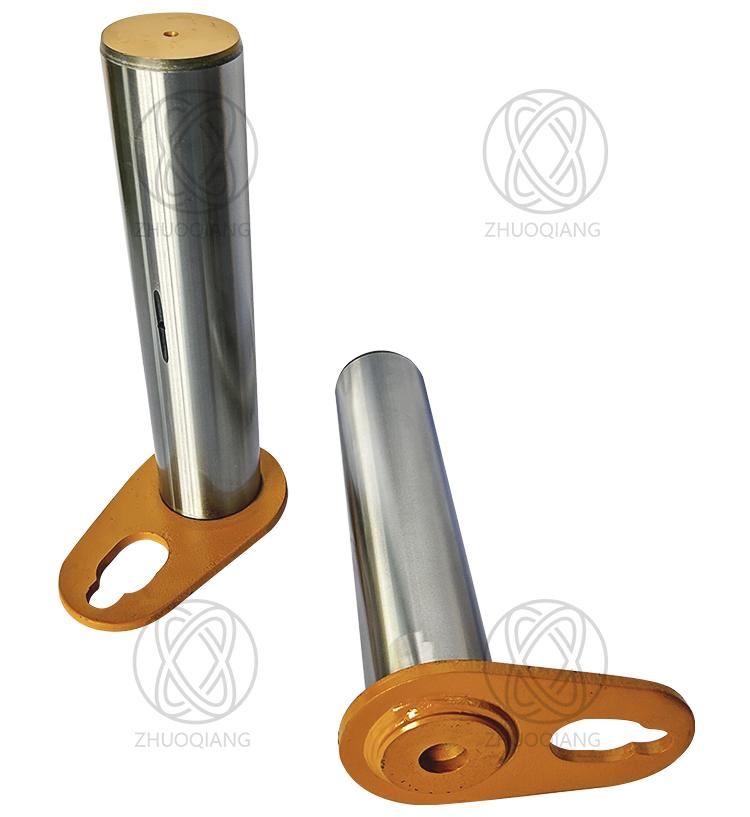

Anti-rotation flags are welded tabs locking the component in place. They prevent it from spinning inside the bucket ear. If it spins freely, it rapidly bores out the structural steel. Repairing this requires expensive welding and line-boring. Custom designs solve these inherent mechanical flaws directly.

Custom components carry their own implementation risks. Ordering bespoke parts without field verification is dangerous. You must measure the exact post-machining tolerances of your host equipment. A perfect pin fails if the bucket ear remains warped.

When you should specifically request custom solutions:

1. Older machinery requiring oversized pins to correct sloppy joints.

2. Mining environments needing complex grease mapping for continuous lubrication.

3. Heavy quarrying operations demanding reinforced anti-rotation flags.

4. Mixed-fleet setups utilizing non-standard bucket attachments.

Compatibility and Implementation: Pins, Bushings, and Lubrication

The Pin-and-Bushing Mating Rule is a vital metallurgical standard. Your pin should typically be harder than the mating bushing. Why? Bushings are cheaper and much easier to replace. You want the sacrificial bushing to wear out first. This protects your more expensive components and heavy structural linkages. If the pin is softer, it develops deep grooves quickly. These grooves then act like saw blades against new bushings.

Lubrication dynamics also strongly dictate joint performance. Evaluate specifications based on their integrated grease path designs. Axial holes channel grease straight down the center axis. Radial holes distribute it outward directly to the wear surfaces. Groove shapes heavily influence grease retention under pressure. Proper pathways completely prevent catastrophic dry-running conditions. Dry joints generate extreme friction and heat, leading to rapid seizure.

The design must also match your chosen lubricant. Heavy-duty molybdenum grease requires adequately sized grease channels. If the grooves are too shallow, thick grease cannot flow properly. This starves the joint of necessary lubrication.

Field-level implementation carries serious mechanical risks. Thermal expansion occurs during hot weather installation. Mechanics sometimes hammer parts forcefully to save time. You must use proper alignment tools always. Reckless installation micro-fractures the hardened outer surface. These invisible cracks eventually cause massive structural failures later on.

Follow these best practices for field installation:

• Freeze components slightly before installation to shrink them marginally.

• Use hydraulic press tools instead of swinging sledgehammers.

• Clean all bores meticulously to remove abrasive dirt and rust.

• Align bores perfectly to prevent dangerous galling on entry.

How to Shortlist and Vet an Excavator Pin Shaft Supplier

You must look beyond slick marketing claims. Technical validation protects your fleet investment. Ask specific, challenging questions during the early evaluation phase. Request Material Test Reports (MTRs) immediately from prospective partners. MTRs provide the exact chemical composition of the steel batch. They prove the supplier used actual 4140 steel, not a cheaper substitute. Reputable suppliers happily provide these documents upon request.

Demand clear batch traceability for every single part they ship. You should also rigorously verify their heat treatment capabilities. Proof of in-house heat treatment guarantees better quality consistency. Outsourced processing often introduces dangerous quality variations between batches. Finally, ask for ultrasonic or magnetic particle inspection reports. These non-destructive tests detect hidden sub-surface micro-cracks effectively. Visual inspections alone cannot guarantee structural integrity.

Assess your vendor's actual production capacity realistically. Can they handle bulk fleet orders consistently throughout the year? Do they respond rapidly for one-off emergency replacements? You need a partner capable of doing both reliably. Finding an agile excavator pin shaft supplier solves major procurement problems. Long-term vendor partnerships rely on transparent quality control and predictable delivery. Assess their inventory buffers for high-turnover parts. A solid supplier acts as an extension of your own maintenance team.

Conclusion

Lifecycle performance is driven by strict metallurgical integrity. Exact machining tolerances dictate long-term durability in the field. You should never prioritize the lowest initial purchase price blindly. High-quality components keep your machines running smoothly for thousands of hours. They prevent catastrophic joint seizures and save massive labor costs.

We encourage buyers to audit current failure rates now. Look for patterns in premature wear across your fleet. Measure your actual equipment tolerances in the field accurately. Request detailed technical drawings and material certs from shortlisted suppliers. Do this technical diligence before placing any sample orders. Taking these steps ensures immediate operational success and reliable fleet performance.

FAQ

Q: How do I accurately measure an excavator pin shaft for a replacement order?

A: Start by measuring the outer diameter (OD) using digital calipers. Measure the overall length from end to end. Next, calculate the usable length between the specific retention points. Finally, carefully note all grease hole locations and thread sizes. Accurate measurements ensure your replacement part fits the existing joint perfectly.

Q: What is the ideal hardness depth for heavy-duty bucket pins?

A: Engineering baselines typically require a 2mm to 4mm induction-hardened case depth. This precise depth provides a highly wear-resistant surface. At the same time, it maintains necessary core ductility. A softer, ductile core allows the pin to absorb massive shock loads without shattering during heavy excavation work.

Q: Why do my new excavator pins wear out faster than the OEM originals?

A: Premature wear usually points to discrepancies in aftermarket specifications. Common culprits include using inferior steel grades. Improper heat treatment also causes the hardened surface to flake off rapidly. Additionally, mismatched hardness levels between the new pin and existing bushings will accelerate wear on both joint components.
