Which Excavator Bushing Design Fits Bucket Linkages?

Unplanned bucket linkage failures paralyze job sites instantly. When a pivot point seizes or shatters, it brings heavy equipment to a sudden halt. This results in severe downtime and forces teams into costly line-boring repairs. The stakes are incredibly high in harsh operational environments. We must evaluate every component rigorously to prevent these catastrophic mechanical failures. This article provides a comprehensive framework to solve this specific problem. You will learn how to evaluate and select the correct material, design, and dimensional tolerances for your machinery. We will explore how different operating environments and mechanical loads dictate your component selection. By understanding these variables, you can extend the service life of your heavy machinery significantly. We cut through the noise to focus purely on pragmatic maintenance realities. You will gain actionable insights to keep your earthmoving equipment running efficiently under extreme stress. Do not let premature wear destroy your project schedule.

Key Takeaways

• Operating environments (abrasive vs. high-impact) dictate whether hardened steel or bronze alloys are the most cost-effective choice.
• Strict adherence to exact excavator bushing specifications—specifically cylindricity and clearance tolerances—is critical to preventing premature galling and pin failure.
• Sourcing from a reliable excavator bushing supplier with traceable material certifications mitigates the risk of installing substandard, fast-wearing parts.
• Worn housings often require a custom excavator bushing to restore factory tolerances without replacing the entire linkage arm.

The Mechanical Demands on Bucket Linkages

We must first define the exact failure criteria threatening earthmoving machinery. Bucket linkages endure relentless punishment during standard daily operations. Mechanical failures typically split into two distinct categories. These include abrasive wear and impact deformation. Abrasive wear happens when dirt, sand, and silica infiltrate the joint assembly. These harsh particles act like sandpaper inside the tightly confined space. They slowly grind away the hardened surfaces of the excavator bushing over hundreds of working hours. Impact deformation presents a completely different challenge. This occurs frequently during heavy rock handling in quarries. Massive shock loads strike the bucket teeth directly. The steel transfers this immense force straight into the pivot points. This extreme shock can physically crush or deform inferior materials instantly.

Next, you must analyze the load distribution carefully. The H-link and bucket connection points absorb the highest mechanical stress on the machine. These joints act as the primary fulcrum for earth-breaking breakout force. When the hydraulic cylinders push forward, the linkage transfers immense torsional and shear loads. Uneven load distribution here accelerates component degradation rapidly. The steel literally bends at a microscopic level under these massive loads.

Delayed replacement carries severe financial penalties. Ignoring early wear signs damages the mating pin extensively. It also wrecks the structural linkage eye itself. Once the housing eye stretches or ovals out, a simple parts swap becomes impossible. You face extensive welding processes and expensive line-boring procedures to fix the structural damage. Proactive maintenance saves significant repair money. Ignoring a small clunking noise often leads to catastrophic joint failure later. We urge maintenance teams to monitor these stress points weekly.

Evaluating Core Excavator Bushing Materials and Designs

Selecting the right material determines the survival of the entire linkage assembly. Let us evaluate induction-hardened steel first. This robust material excels in high-impact, highly abrasive operating environments. Manufacturers heat treat both the outer and inner surfaces to achieve extreme hardness. However, hardness depth matters immensely during real-world applications. A shallow hard case wears away quickly once grit penetrates the surface. Furthermore, the core toughness must remain ductile. A brittle inner core will shatter or crack under heavy shock loads. We recommend deep induction hardening for severe rock quarry operations. The hardened shell resists scratching, while the ductile core absorbs sudden impacts safely.

Bronze, bi-metal, and self-lubricating alloys serve a entirely different mechanical purpose. We assess these advanced alloys for high-friction, heavy-load applications. Often, field technicians face inconsistent manual greasing schedules due to remote job sites. Self-lubricating alloys contain solid lubricants embedded deeply within the metal matrix. They release oil or graphite automatically when friction increases. This prevents sudden seizure during dry operation. Bi-metal options combine a rugged steel outer shell with a soft bronze inner layer. They offer excellent load capacity and provide superior galling resistance against the steel pin.

Internal groove geometries directly impact your lubrication efficiency. We compare three common designs heavily used in the industry today. You can choose between straight, figure-eight, and cross-groove patterns.

• Straight grooves: They provide basic grease flow paths but often push lubricant straight out the ends. This leaves the center dry.
• Cross-grooves: These patterns intersect sharply to distribute grease across a broader surface area safely.
• Figure-eight grooves: This design excels at optimal grease retention. It traps lubricant within the high-friction zone continuously to prevent dry starts.

A superior groove geometry retains grease longer. It also flushes out abrasive contaminants effectively as new grease enters the joint.

Critical Excavator Bushing Specifications to Verify

Dimensional accuracy separates a reliable joint from a catastrophic mechanical failure. We must verify exact excavator bushing specifications strictly during the initial selection process. Cylindricity and concentricity represent the most critical geometric tolerances available. Out-of-round tolerances lead directly to uneven structural load distribution. If a cylinder is slightly misshapen, the pin only contacts small, localized high spots. This localized friction generates extreme internal heat quickly. It destroys the protective lubricant film and causes the pin to seize completely. Precision machining prevents this dangerous scenario.

Clearance tolerances require a very delicate engineering balance. You must maintain enough gap space to retain lubricant between the moving surfaces. However, an excessively tight clearance causes severe binding during operation. During aggressive digging operations, heavy loads and thermal expansion cause metals to swell predictably. If clearances are too tight, the joint locks up solid. If they remain too loose, shock loads hammer the components to pieces violently. Consult OEM engineering manuals constantly to find the precise clearance baseline for your specific machinery size.

Sometimes, standard catalog parts fail to fit repaired linkage arms. When a linkage eye wears extensively, machinists must line-bore it in the field. This complex process removes damaged material to restore a perfectly round housing. Because the bore is now larger, standard factory parts will slip out immediately. This scenario strictly requires a custom excavator bushing to restore tight fitment. Custom machining ensures the outer diameter matches the newly cut bore exactly.

Here is a brief comparison of standard versus custom fitment considerations for field repairs:

Understanding these fitment scenarios prevents recurring failures on the job site.

Implementation Realities: Installation and Removal Risks

Field component replacements rarely go exactly as planned. We must openly acknowledge the harsh realities of removing a worn, seized bucket linkages excavator bushing. Extraction challenges constantly test the patience of highly experienced mechanics. Extreme rust, mud packing, and internal galling often fuse the components together solid. Technicians frequently employ heavy pressing equipment to push stubborn parts out. When fifty-ton presses fail, mechanics turn to welding shrinkage techniques. They run a thick weld bead completely around the inside diameter. As the fresh weld cools, it physically shrinks the metal slightly. This pulls the outer wall away from the housing, allowing easier removal. In extreme seizure cases, dangerous thermal lancing becomes necessary to cut the part out completely.

Housing integrity assessment remains absolutely non-negotiable before installation. After extraction finishes, you must verify the bucket linkage bore condition meticulously. Mechanics must measure it across multiple axes. Ensure the bore remains perfectly round from end to end. It must also be free of deep scoring or galling marks. Pressing a rigid new part into a damaged housing guarantees premature failure. A rough bore will physically deform the new cylinder during insertion. This transfers the structural irregularities straight to the inner operating surface.

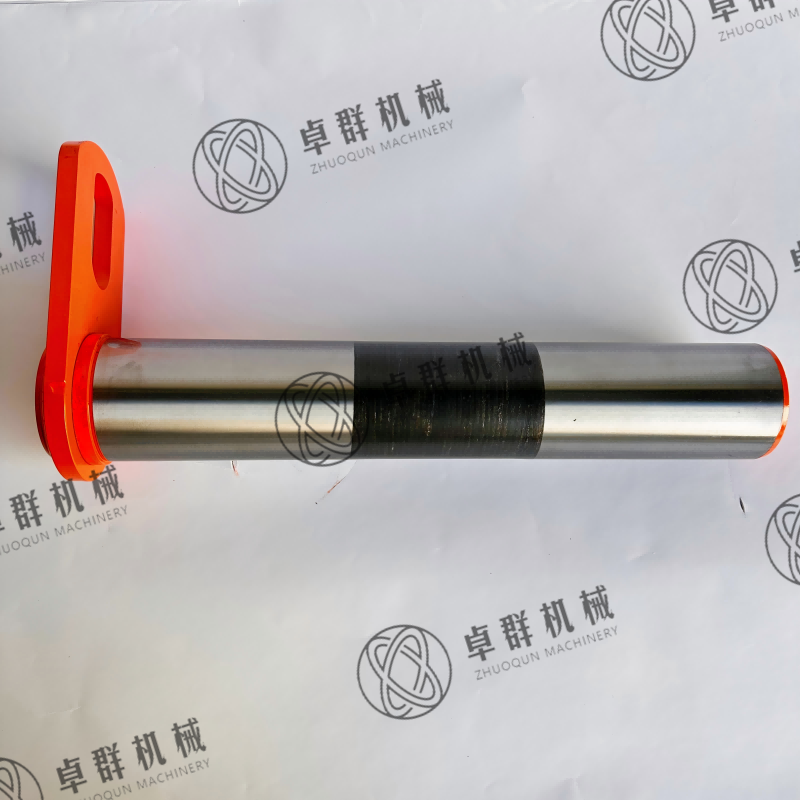

Finally, we must evaluate the mating components rigorously. Many operators make the terrible mistake of replacing only one half of the joint. You must inspect the corresponding pin closely for wear. If you install a pristine cylinder against a scored, out-of-round pin, the joint degrades instantly. The damaged pin acts like a steel file against the new metal surface. This poor maintenance practice often halves the lifespan of the newly installed component. Always replace them in matched pairs if the pin shows any visible wear patterns.

Vetting Your Excavator Bushing Supplier

The operational quality of your replacement parts depends entirely on your chosen vendor. We must scrutinize manufacturing transparency very carefully today. You need to differentiate a primary manufacturer from a simple commodity reseller. Primary manufacturers proudly maintain their own in-house machining operations. They control their own heat-treatment capabilities and quality labs. This vertical integration ensures consistent quality control across every single production batch. Resellers often switch sourcing factories without warning. This leads directly to unpredictable dimensional tolerances and premature failures in the field.

Quality assurance protocols separate reliable engineering partners from risky vendors. We stress the absolute importance of requesting traceable material certificates. You should also demand detailed heat-treat validation reports. These vital documents prove the surface hardness actually matches the stated engineering specification. Without proper documentation, you risk installing soft steel. Soft steel deforms completely during the first heavy rock impact. A truly trustworthy excavator bushing supplier provides these certifications willingly and immediately.

Inventory availability and lead times dictate your machine downtime heavily. You must evaluate a partner's logistical ability to supply components rapidly. Can they deliver standard OEM replacements from stock on the same day? Do they possess the agility to produce rapid-turnaround custom sizes when line-boring occurs?

1. Check their current warehouse inventory levels for your specific machine models constantly.
2. Ask about their expedited shipping capabilities for emergency weekend breakdowns.
3. Verify their machining lead times for custom-machined oversized parts specifically.
4. Request references regarding their past fulfillment accuracy and delivery speed.

An agile vendor minimizes your machine downtime significantly. They keep your fleet moving smoothly when catastrophic component failures occur unexpectedly.
