Precision engineering relies entirely on perfectly integrated components. A single incorrectly sized element ruins whole mechanical assemblies. You cannot afford to guess when specifying machinery parts. Underspecifying a component directly leads to premature wear. It often causes catastrophic equipment failure and highly disruptive downtime. Conversely, overspecifying inflates your project budgets unnecessarily. We must bridge the gap between abstract engineering calculations and harsh procurement realities. This approach solves a major industrial bottleneck.
In this guide, we explore a practical framework for evaluating load capacity. You will learn how to determine operational tolerances effectively. Finally, we will show you how to prepare precise specifications for procurement teams. Mastering these variables ensures your mechanical designs perform reliably under real-world stresses.

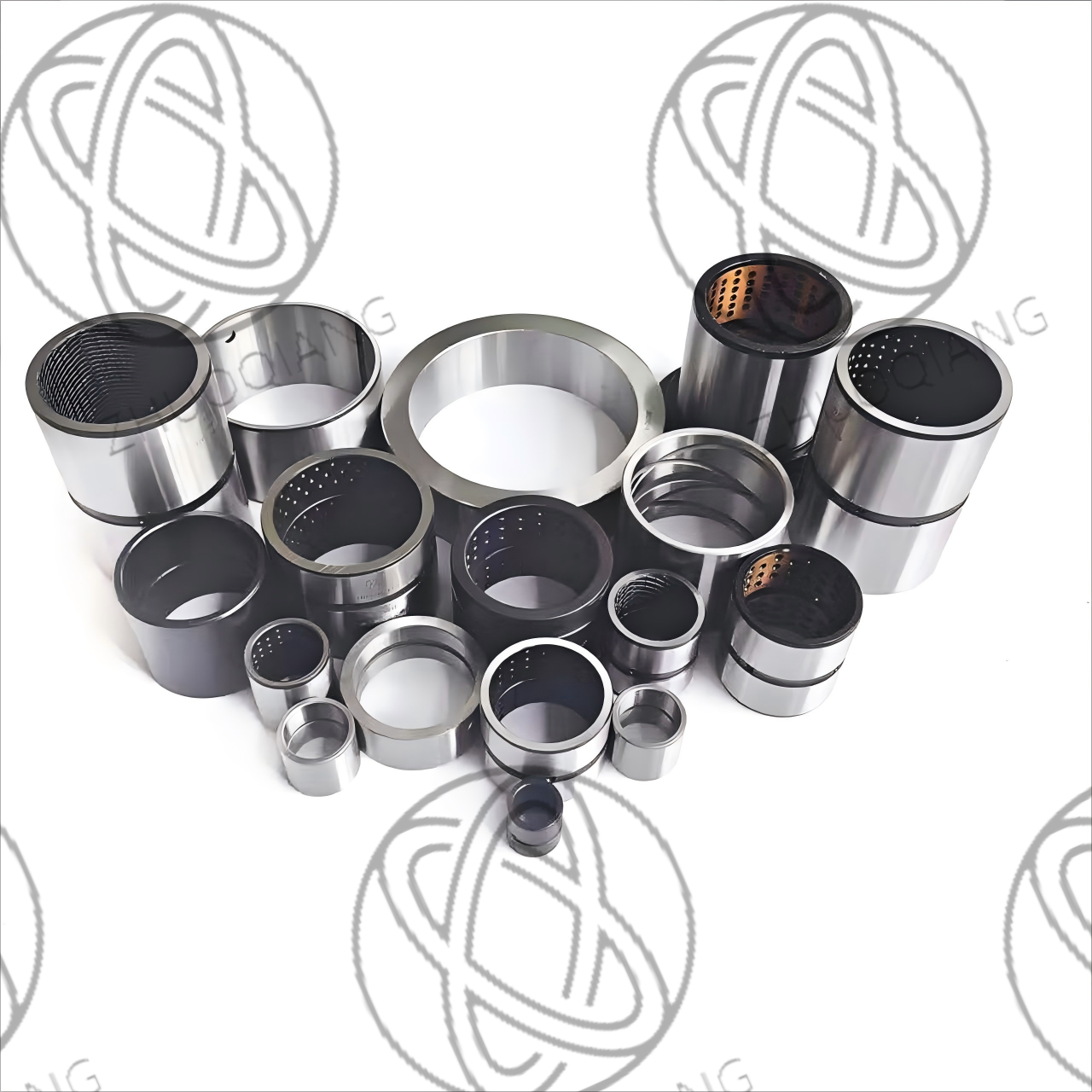

Bushing capacity is dictated by a combination of static loads, dynamic loads, and operational PV (Pressure-Velocity) limits.
Accurate sizing must account for thermal expansion, interference fits, and housing tolerances, not just nominal dimensions.
Specialized applications (like heavy earthmoving) require specific OEM-grade replacements rather than standard off-the-shelf components.
Securing an accurate quote from a bushing supplier requires a complete technical checklist, minimizing assumptions and procurement risks.
Engineers must first establish correct baseline capacities. They cannot evaluate load capacity based on a single generalized number. We must separate static limits from dynamic capabilities. Static load rating defines the maximum force applied to a stationary part. Exceeding this limit causes permanent plastic deformation. The component will dent or flatten. Dynamic load rating measures the maximum force applied during active motion. It directly determines the operational lifespan of the part.
Static loads often peak during equipment startup or unexpected impacts. You calculate them by measuring the total weight resting on the stationary joint. Dynamic loads fluctuate constantly. They depend on rotational speed, oscillation angles, and varying operational forces. A standard bushing handles static loads exceptionally well. However, continuous motion generates friction. This friction reduces the effective dynamic capacity significantly.
Industry standards rely on L10 life expectancy calculations. This methodology predicts how long ninety percent of a specific batch will survive under load. We base this calculation on dynamic load ratings. You must input operating speed, applied force, and specific application factors. These variables yield an expected lifespan in operational hours. High speeds reduce this lifespan exponentially. Heavy loads compress the material, altering wear patterns. You must run these calculations before finalizing any design.
Load capacity never exists in a vacuum. It demands evaluation against operating velocity. We call this the PV limit. Pressure represents the load distributed across the internal surface area. Velocity represents the surface speed of the rotating shaft. Multiplying these two factors generates the PV value. High loads combined with rapid speeds generate immense heat. If you exceed the maximum PV limit, the component suffers thermal failure. The material melts, degrades, or seizes entirely. We must maintain operational parameters safely below this critical threshold.
Selecting the right capacity requires exact dimensional control. Nominal sizes only provide a starting point. Real-world installation drastically alters final operating dimensions. We must account for every microscopic deviation. This ensures smooth operation and prevents unexpected binding.
You must identify several primary dimensional inputs accurately. Missing even one measurement compromises the entire assembly. Consider the following crucial metrics:
Inside Diameter (ID): This dictates the shaft fitment. It must accommodate the shaft diameter plus a calculated running clearance.
Outside Diameter (OD): This determines how the part fits inside the housing bore.
Overall Length: This governs the load distribution area. Longer parts reduce surface pressure significantly.
Wall Thickness: This provides structural integrity. It prevents crushing under heavy static loads.
Installation relies heavily on interference fits. The outer diameter is slightly larger than the housing bore. Press-fitting forces the component into place. This process firmly secures the part without extra fasteners. However, it alters the internal geometry. The pressure compresses the wall inwards. This action reduces the inside diameter measurably. We call this phenomenon "housing crush."
You must perform clearance calculations before operation. Follow these strict engineering steps:
Measure the exact housing bore diameter.
Determine the maximum outside diameter of the component.
Calculate the resulting interference press fit volume.
Apply the material-specific compression ratio to estimate ID shrinkage.
Add this shrinkage value to your baseline running clearance requirements.
Failing to calculate thermal expansion represents a common engineering pitfall. High operating temperatures change exact bushing specifications dramatically. Friction heat causes metals to expand. Polymer materials expand even faster than steel or bronze. If you ignore this variable, the inner diameter shrinks during operation. The component eventually grips the moving shaft. This causes immediate mechanical seizure. You must calculate the expansion coefficient for your chosen material. Always verify the maximum expected operating temperature.
Standard ANSI or ISO metric sizes suit most general applications. They reduce lead times and lower manufacturing costs. However, specialized projects demand custom machining. If your housing bore suffers from irregular wear, standard sizes fail. Extreme temperature environments also require non-standard running clearances. You must specify custom tolerances whenever standard parts compromise system reliability.
Capacity limits depend entirely on material science. A dimensionally perfect part fails quickly if manufactured from the wrong compound. We evaluate materials based on load strength, friction coefficients, and environmental resistance. Your choice dictates maintenance schedules and overall system longevity.
Material Type |
Primary Strengths |
Operational Limitations |
Ideal Application |
|---|---|---|---|
Bronze / Metallic |
High load capacity, excellent high-temperature tolerance. |
Requires regular lubrication. Vulnerable to dry running. |
Industrial gearboxes, heavy manufacturing equipment. |
Polymer / Composite |
Self-lubricating, strong vibration dampening, lightweight. |
Strictly limited by thermal thresholds. Lower static load limit. |
Food processing, clean rooms, inaccessible joints. |
Steel / Hardened |
Extreme impact resistance, highest static load ratings. |
Requires strict lubrication. Prone to scoring without maintenance. |
Earthmoving machinery, heavy construction equipment. |
External environments force a complete recalculation of base capacity requirements. Exposure to harsh chemicals degrades polymer compounds rapidly. Abrasive dust acts like sandpaper inside the joint. It ruins bronze surfaces within days. Moisture introduces severe corrosion risks for standard steel. You must adjust your material choice accordingly. Marine environments demand specialized bronze alloys or marine-grade polymers. Mining operations require heavy-duty sealing mechanisms. Always evaluate the surrounding environment before finalizing load calculations.
Capacity requirements change drastically based on how the machine operates. A smooth rotational movement stresses components differently than a violent, intermittent shock. We must evaluate these unique load profiles accurately.
Continuous rotational friction demands excellent thermal management. Conveyor rollers represent this profile perfectly. They operate smoothly but run constantly. Heat dissipation becomes your primary concern here. Heavy, intermittent shock loads require completely different engineering solutions. Mining crushers and hydraulic presses deliver massive, instantaneous force. These applications require high structural rigidity. Yield strength outweighs low friction coefficients in these scenarios.
Extreme earthmoving equipment operates under the harshest possible conditions. Excavator linkages absorb massive shock loads while digging through bedrock. Standard materials shatter under these immense forces. Consider the replacement of a premium caterpillar backhoe bushing 9r0411 as a perfect technical example. This application demands exact OEM specifications. You must utilize hardened steel components. Strict impact-load capacities are absolutely non-negotiable for system safety. If you install an under-rated component here, the pivot joint will fail catastrophically. The machine will drop its load, endangering operators instantly.
Precision environments prioritize accuracy over raw load capacity. Drill jigs require perfect alignment. The internal diameter must guide the cutting tool flawlessly. Here, exact hole-location tolerances take precedence over heavy shock resistance. The load remains relatively light. However, the dimensional requirements are incredibly strict. A deviation of a few micrometers ruins the manufactured product. We select hardened materials here to prevent wear, not to support massive weight.
Engineering perfection means nothing without proper procurement execution. Sourcing components requires clear, detailed communication. Vague requests inevitably lead to procurement bottlenecks. They force manufacturers to guess your actual needs.
Unclear RFQs (Requests for Quote) create significant problems. Vague requests lead directly to inflated quotes. They force the manufacturer to build risk assumptions into their pricing. If you do not specify a tolerance, they quote the most expensive, highly machined option to protect themselves. Alternatively, they quote a cheap, inadequate part to win the bid. Both outcomes harm your project timeline and budget.
You must provide comprehensive data. Give your manufacturing partner everything they need to succeed. Include the following details in every technical request:
Exact dimensional requirements, including firmly established acceptable +/- tolerances.
Complete load and speed parameters. Specify Static loads, Dynamic loads, and maximum RPM.
Detailed environmental conditions. List the expected temperature range and specific contaminants.
Mating shaft material and exact surface hardness.
Required production volume and strict lead time requirements.
Choosing the right manufacturing partner is crucial. You must evaluate every potential bushing supplier meticulously. Look for rigorous quality control certifications like ISO 9001. They must offer full trace materials documentation. This proves they use genuine, high-grade metals. Demand testing validation reports for load capacities. Finally, prioritize companies offering responsive engineering support. A good partner reviews your designs and suggests critical operational improvements.
Choosing the correct component capacity requires a careful matrix decision. You must balance load, speed, fitment, and environmental factors simultaneously. Ignoring any single variable invites mechanical failure. Carefully distinguish between static ratings and dynamic requirements. Calculate interference fit shrinkage accurately before finalizing installation plans. Address thermal expansion proactively to prevent system lockup.
Your next steps involve strict data collection. Finalize all engineering drawings completely. Gather all operational data parameters from your field tests. Once you compile this data, engage a qualified supplier. Present them your detailed technical checklist. Begin shortlisting candidates based on their engineering feedback. Request prototypes for rigorous physical testing. This systematic approach guarantees long-term reliability for your machinery.
A: You must account for housing crush. When pressed into a smaller housing, the component compresses. The inner diameter shrinks. Calculate the exact interference volume based on the outer diameter and housing bore. Apply the material's elasticity modulus to find the shrinkage rate. Add this value to your required running clearance to determine the initial pre-installation inner diameter.
A: Transition to a roller bearing when speeds increase significantly and friction must remain minimal. Roller bearings excel in high-speed, low-friction continuous operations. They handle complex multi-directional loads well. Stay with a solid plain sleeve component when facing extremely high static loads, heavy shock impacts, or low-speed oscillation where bearings would easily crush.
A: Always employ safe engineering margins. If your required load falls directly between two standard catalog ratings, you must round up. Select the higher capacity component. This engineering best practice prevents premature wear. It accommodates unexpected operational spikes safely. Never round down, as this guarantees a shortened operational lifespan and risks sudden mechanical failure.
