8W5293
CAT

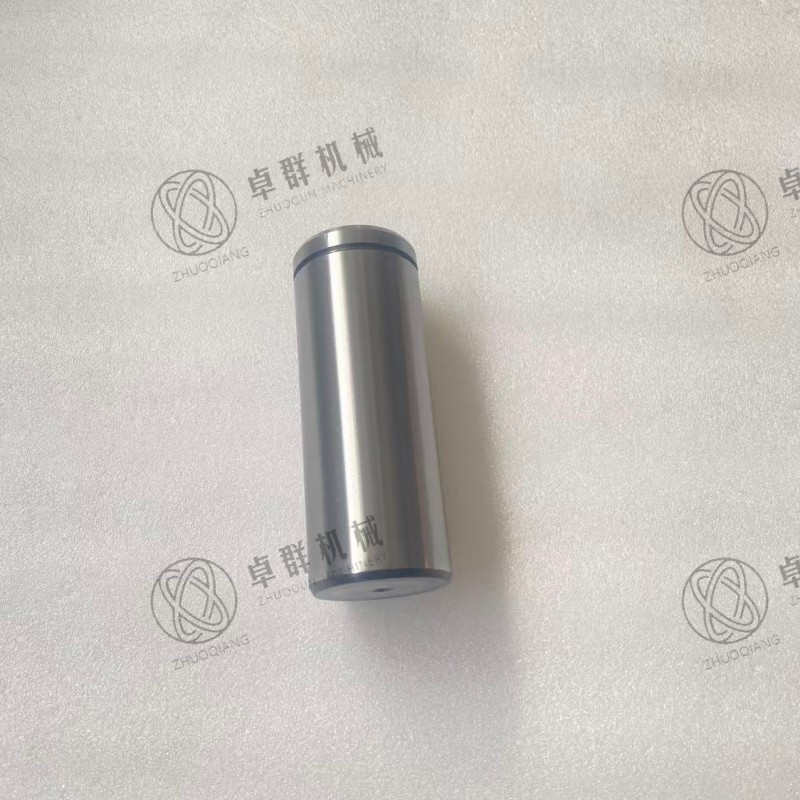

The 8W5293 (8W-5293) is a high-quality replacement steel linkage pin (or assembly pin) for Caterpillar equipment, primarily utilized in the rotational connection points of heavy-duty construction machinery.
Primary Applications
- Supports Rotational Movement: Acting as a pivot pin, it connects machine frames, linkage mechanisms, and work tools, facilitating smooth rotation between components while withstanding heavy loads, vibrations, and impact forces.
- Key Installation Locations:
- Front Axle Group: Its most common application; frequently used in the front axle connections of motor graders (e.g., in assemblies such as the 8W-6465 AXLE GP-FRONT, where multiple pins are typically required).
- Steering Linkage Systems.
- Hydraulic System Connections.
-Blade Lift Assemblies.
-Other Linkage or Chassis Pivot Points.

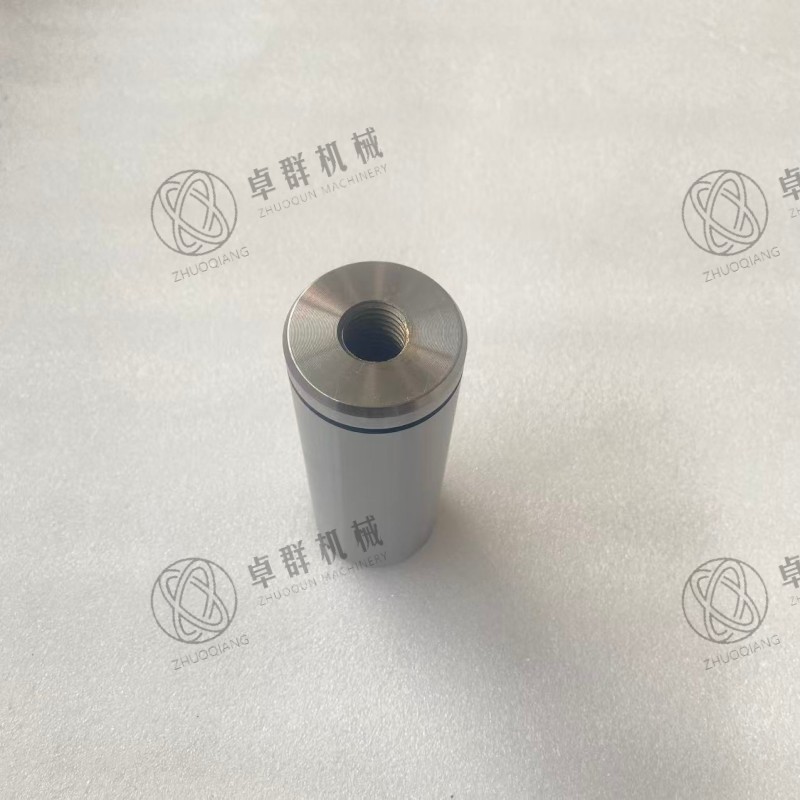

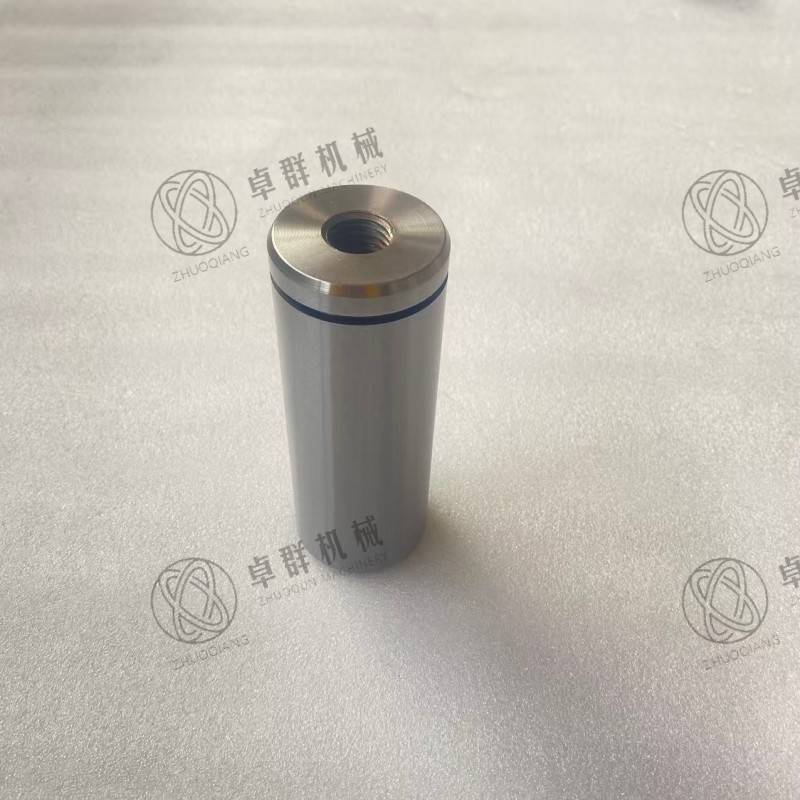

It is a straight pin featuring a puller hole to facilitate easy installation and removal, and it contains no internal grease passages.
Compatible Equipment
Primarily designed for Caterpillar Motor Graders, though also partially applicable to other types of heavy equipment:
- Motor Grader Series: 12G, 12H, 12K, 14G, 14H, 16G, 120G, 120H, 120K, 130G, 135H, 140G, 140H, 140K, 160G, 160H, 163H, etc. (including variants such as ES/NA).
- Other Potential Applications: Chassis or linkage systems on Track-Type Tractors, as well as similar rotational connection points on other heavy machinery such as bulldozers.
Usage Scenarios
- Engineering Construction: Road leveling, grading, and earthmoving operations.
- Mining and Quarrying: Equipment maintenance within heavy-load environments.
- Building and Maintenance: Securing and connecting critical moving components—such as front axle steering and blade control mechanisms—during routine motor grader operations. - Repair and Replacement: Classified as a wear item, this component is used during equipment maintenance to replace worn pins, ensuring smooth rotation and minimizing operational failures.
Product Features and Advantages:
- High-strength steel (Steel / Boron Steel) construction, offering exceptional wear resistance and impact durability.
- Precision-engineered dimensions match original factory specifications, ensuring a direct and seamless installation (OEM-level fit).
- Helps the equipment maintain stable performance under harsh operating conditions, thereby extending the service life of connecting rods and bushings.
