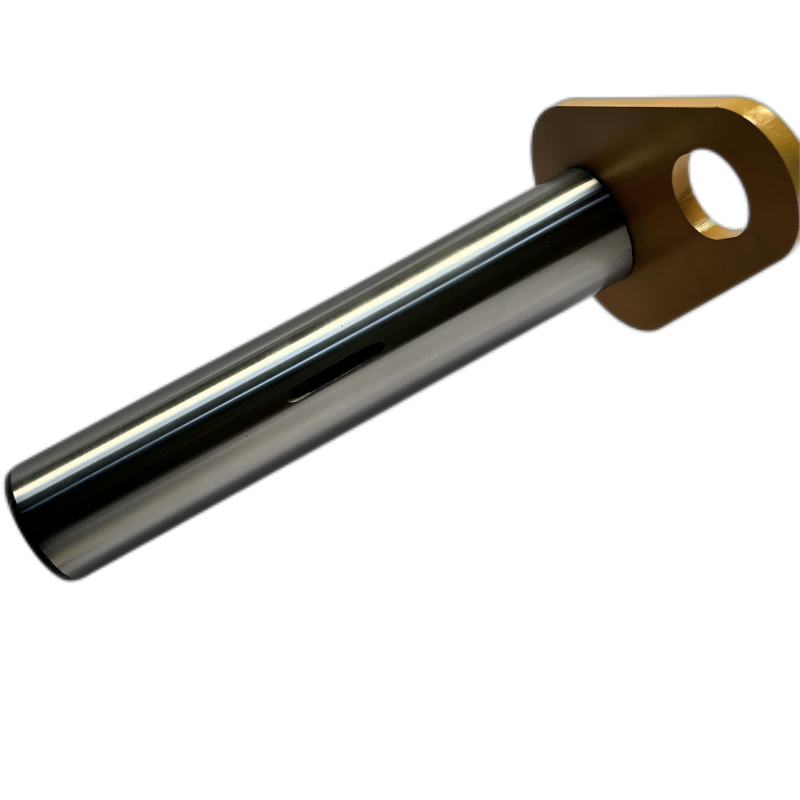

Custom-Made 70 * 360 mm Loader Sub-Frame Pin, Bucket Pin, Pin Sleeve for LG855N 30890000009

  • specifications:70*360mm
  • Material ： 45#/40Cr/42CrMo
  • High and medium frequency induction equipment: The hardenable layer can be controlled withina range of 2MM-6MM. The Rockwell hardness HRCcan reach 52-60.
Availability:
Quantity:
Inquire Add to Basket

  • 30890000009

>> Product Name


wheel Loader  Pin Shaft

>> Product characteristics

  • Wear and impact resistance performance:

    The surface of the shaft is treated with carburizing and quenching, with a hardened layer depth of 1.5-2.0mm. Its wear resistance is 3-5 times higher than that of ordinary carbon steel, and it can withstand high-frequency impact loads during bucket loading and unloading (such as gravel, concrete blocks, etc.).

  • Mechanical structure optimization:

    The transition between the shaft shoulder and the shaft body adopts a rounded chamfer design (R5-R8) to eliminate stress concentration points. After finite element analysis verification, the fatigue life is ≥ 100000 cycles of load.

  • Adaptive design:

    The size strictly matches the bucket hinge point structure of the LG855N loader, with an installation hole tolerance of ≤ 0.15mm, and the original parts can be directly replaced without additional processing.

>> Certificates And Qualifications


Certificates And Qualifications


>> The Company's Main Product Display



Pins
Size (Diameter*Height) mm Size (Diameter*Height) mm Size (Diameter*Height) mm Size (Diameter*Height) mm Size (Diameter*Height) mm
40*100 51*110 60*175 80*740 100*630
40*281 50*225 60*600 80*590 110*400
40*406 50*360 63*680 85*230 120*405
40*1290 50*445 65*150 85*850 125*480
45*100 50*524 65*490 88*210 127*276
45*100 51*255 70*238 90*280 150*1251
45*210 52*262 70*690 90*840 130*760
45*330 55*180 75*530 95*240 145*410
45*450 55*460 76*218 95*350 158*932
45*548 57*191 79*614 100*275 160*258
The sizes above are just for reference, we can't list all sizes here. We can supply more products as your requirements. Please feel free to send us your inquiry.

 Bushings
Size (Diameter*Height) mm Size  (Diameter*Height) mm Size  (Diameter*Height) mm Size  (Diameter*Height) mm Size  (Diameter*Height) mm
30*35*290 50*60*80 70*90*90 100*110*49 130*200*70
30*38*190 50*64*70 75*90*150 100*140*100 130*180*76
30*40*50 55*60*310 76*90*81 100*175*120 140*155*89
30*60*193 55*65*60 80*100*110 110*125*130 140*164*160
35*45*287 55*70*80 80*140*90 110*140*140 140*180*355
40*45*185 60*70*40 80*95*80 120*135*100 165*184*183
40*50*30 60*70*85 85*110*110 120*140*210 170*195*158
40*80*233 60*75*90 90*104*180 120*150*221 180*240*115
45*55*40 70*80*85 90*160*120 120*180*540 190*140*544
50*55*385 70*85*130 95*110*120 127*146*140 220*240*415
The sizes above are just for reference, we can't list all sizes here. We can supply more products as your requirements. Please feel free to send us your inquiry.


    Excavator bushing


1
2
3
4


    Excavator pin


2
1
4
3


    Loader bushing


44
33
22
11


    Loader pin


1
2
3
4


    Construction machinery pins and bushings


1
2
3
4


>> Partial Applicable Vehicle Model Display


Partial Applicable Vehicle Model Display

Partial Applicable Vehicle Model Display1

>> Premium Materials for Durability and Strength

  • Product material:

  • Performance parameters of pin shaft material

  1. 42CrMo alloy structural steel

    The tensile strength is not less than 1080MPa, the impact absorption energy is ≥ 60J, the hardness after surface quenching reaches HRC48-52, and the depth of the hardened layer is 1.5-2mm. It is suitable for heavy-duty mining conditions and can withstand loads of over 100kN.

  2. 45 # quenched and tempered steel

    Tensile strength ≥ 600MPa, hardness HRC28-32 after quenching and tempering treatment, cost about two-thirds lower than 42CrMo, suitable for medium load scenarios such as earthworks, but regular lubrication is required to reduce wear.

  3. 316L stainless steel

    Tensile strength ≥ 520MPa, excellent corrosion resistance, salt spray test can withstand more than 1000 hours, suitable for humid environments such as ports and coastal areas, and resistant to chloride ion concentration ≤ 5000ppm.

  4. 35CrMo high-strength steel

    Tensile strength ≥ 980MPa, impact absorption energy ≥ 47J in -40 ℃ environment, outstanding low-temperature toughness, can avoid cold brittle fracture of components in extremely cold areas, suitable for operating scenarios below -30 ℃.

    5. Pin shaft raw materials


Bushing raw materials



Custom-Made 70 * 360 mm Loader Sub-Frame Pin, Bucket Pin, Pin Sleeve for LG855N  30890000009

Production process flow of pin shaft

29270001121


Manufacturing Process of Custom Steel Pin Excavator Bucket Pin Hardened Pin Shaft

FAQs


Q1: What is the typical lifespan of the Custom Steel Excavator Pin for Hitachi 200?
A1: Our hardened excavator pins are built for extended durability, offering high performance over time with proper maintenance.


Q2: Do you offer Custom Excavator Pins for other Hitachi models?
A2: Yes, we specialize in custom steel pins for a range of Hitachi models. Contact us to get the perfect match for your equipment.


Q3: How does the hardened steel pin shaft improve excavator performance?
A3: The hardened steel pin shaft enhances wear resistance and load-bearing capacity, improving performance in demanding construction and mining operations.


Q4: Can your Custom Excavator Pins be used for both construction and mining?
A4: Our custom steel pins are designed to handle heavy-duty tasks across industries such as construction, mining, and earth-moving.


Q5: How do I place a bulk order for the Custom Steel Excavator Pin?
A5: Get in touch with us for bulk orders, and we will provide a personalized quote and production timeline for your custom pin shafts.


Q6: What quality control measures do you implement for Custom Excavator Pins?
A6: Our custom pins go through rigorous quality control, ensuring strict adherence to specifications, material standards, and durability for optimal performance.


Q7: Can I choose specific materials for the Custom Steel Pin?
A7: Yes, we offer various materials such as 45C, 41Cr4, and 42CrMo4, allowing you to select the ideal material for your excavator pin requirements.


Q8: How can I ensure the Custom Steel Excavator Pin fits my Hitachi equipment perfectly?
A8: Our custom steel pins are made to precise dimensions, and we offer tailored solutions to guarantee a perfect fit for your Hitachi 200 excavator.

Previous:
Next:
bucket pin Heavy-duty steel pins linkage pin wheel loader pin shaft Loader arm cylinder pin Quality Loader pin shaft OEM pin shaft for Loader LONKING part Heavy-duty Sany pin shaft Machined steel pins

RELATED PRODUCTS

Custom Steel Pin Excavator Bucket Pin Hardened Pin Shaft For Hitachi 200 3088580
Custom Steel Pin Excavator Bucket Pin Hardened Pin Shaft For Hitachi 200 3088580
Customized Excavator Arm Cylinder Upper Shaft Bucket Pin Suitable For Sany Heavy Industry SY200B.3-37
Customized Excavator Arm Cylinder Upper Shaft Bucket Pin Suitable For Sany Heavy Industry SY200B.3-37
High Quality Excavator Pin Rocker Connecting Arm Pin Suitable For Hitachi 240 3038448
High Quality Excavator Pin Rocker Connecting Arm Pin Suitable For Hitachi 240 3038448

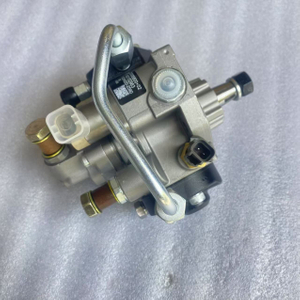

860152963/294000-2590 high fuel pump for Xcmg lw300kv
